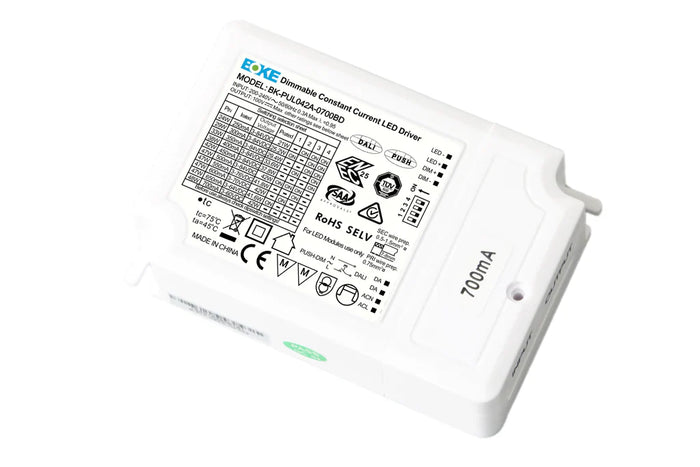

obsolete, replacement please click here  BOKE Constant Current LED Driver: DALI Dimmable Class II driver Flicker Free High PF, low THD Standby power consumption <0.5W with dim-to-off function Ultra-wide voltage output range Current output selectable through dip switch Built in DALI-2 dimming function Supports synchronous dimming across multiple drivers 5 year warranty  For further technical details and data sheets, click here.

Read more less

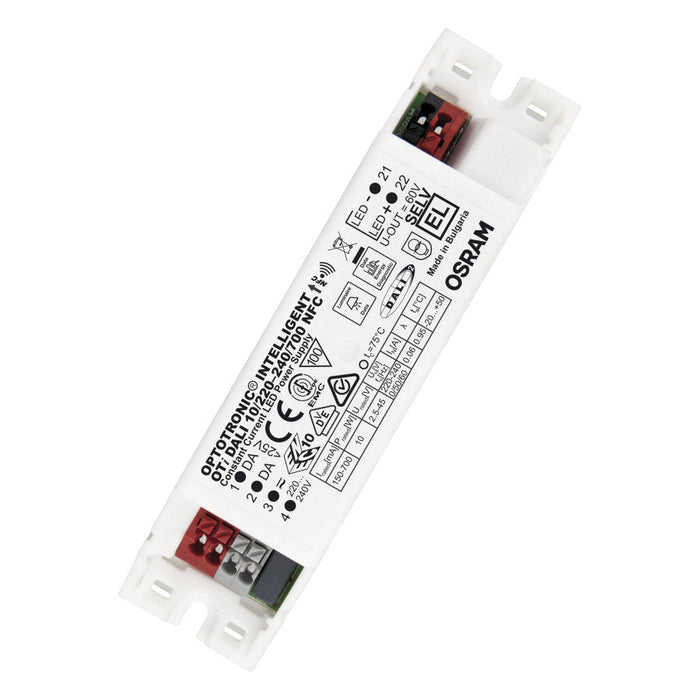

OSRAM OTI DALI 10/220-240/700 NFC 4062172143899 Product family benefits Versatile DALI window driver due to flexible output characteristic Locking and unlocking of luminaire/driver data Easy and fast output current setting via NFC Very high efficiency High-quality dimming of 1…100 % by amplitude dimming DALI-2 certified incl. Parts 251, 252, 253 Areas of application Suitable for downlights, spotlights and LED panels Suitable for use in luminaires with flexible current setting Installation in emergency lighting systems according to IEC 61347-2-13, appendix J Suitable for indoor SELV installations Suitable for luminaires of protection classes I and II

Read more less

The Harvard Harvard CL700L-240-C is a 220-240v, 700mA, 10w LED driver with screwless cable clamps.  All CoolLED Drivers have a high efficiency design, which ensures cool operation and long life. Click Here to see data sheet

Read more less

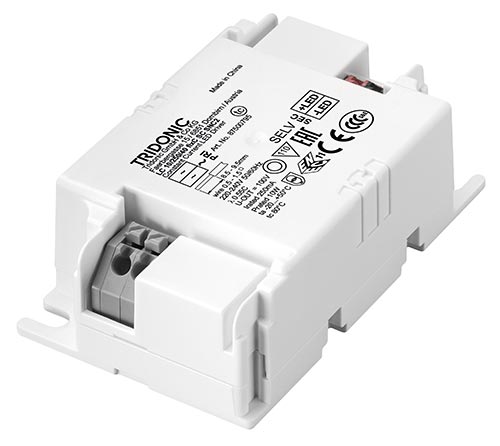

Driver LC 10W 250/350/500/700mA fixC SC SNC2 essence series Product description Fixed output LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Independent LED driver with cable clamps Constant current LED driver For luminaires of protection class II Temperature protection as per EN 61347-2-13 C5e Output current 250, 350, 500 or 700 mA Max. output power 10 W Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 0.5 kV (L to N) Surge protection voltage 1 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

Driver LC 25W 350–1050mA flexC C EXC excite series Product description Constant current LED Driver Adjustable output current between 350 and 1,050 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 25 W Up to 86 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces ready2mains (configuration via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 Typical applications For downlight, spotlight and decorative applications

Read more less

Constant CurrentFully isolated plastic caseProtections: Short circuitOther features:Universal AC input / Full RangeSmall and compact sizeNo load power consumption <0.5WIP30 designClass II power unit, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 8 Output Current 350mA Dimmable (Type) No Output Voltage Range (V) 11~23 Dimensions 60 x 30 x 22 EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A Input Voltage 90~264VAC; 127~370VDC Safety Standards Design refer to UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet APC-8-spec.pdf

Read more less

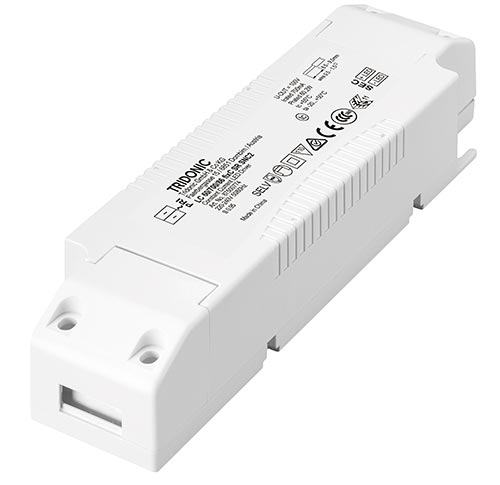

Driver LC 60W 700/1400mA fixC SR SNC2 essence series Product description Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) Temperature protection as per EN 61347-2-13 C5e Output current 700 or 1,400 mA Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Push-in terminals 2 separate strain relief parts for input and output cables with highly robust clamps Functions Overload protection Short-circuit protection No-load protection No output current overshoot at mains on/off Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

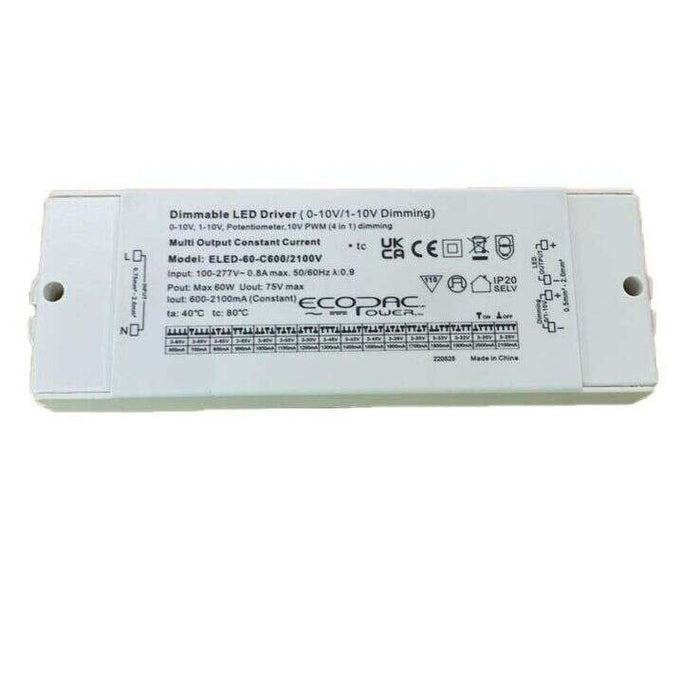

ELED-60-C600/2100V(2100mA) ELED-60-C600/2100V(2000mA) ELED-60-C600/2100V(1900mA) ELED-60-C600/2100V(1800mA) ELED-60-C600/2100V(1700mA) ELED-60-C600/2100V(1600mA) ELED-60-C600/2100V(1500mA) ELED-60-C600/2100V(1400mA) ELED-60-C600/2100V(1300mA) ELED-60-C600/2100V(1200mA) ELED-60-C600/2100V(1100mA) ELED-60-C600/2100V(1000mA) ELED-60-C600/2100V(900mA) ELED-60-C600/2100V(800mA) ELED-60-C600/2100V(700mA) ELED-60-C600/2100V(600mA) Wattage 60 60 60 60 60 60 60 60 60 60 60 60 58.5 52 45.5 39 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC Output Current 2100mA 2000mA 1900mA 1800mA 1700mA 1600mA 1500 1400mA 1300mA 1200mA 1100mA 1100mA 900mA 800mA 700mA 600mA Output Voltage Options 3~29 3~30 3~32 3~33 3~35 3~38 3~40 3~43 3~46 3~55 3~60 3~65 3~65 3~65 3~65 Dimensions 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm Working Temperature -40~+80°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

 Download Product Specification

Read more less

Constant Voltage DesignDali DimmableProtections: Short circuit/ Over Voltage/ Over TemperatureOther features:Dimming range from 0.1% to 100%Range 100-265VACBuilt-in PFC functionIP66 design for indoor or outdoor installations87% efficiency3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 24V Dimmable (Type) DALI Dimensions 230x 70x 44 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 (Surge 4KV) Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100-Dali Series.pdf

Read more less

ComfortLine Terminal L-R1 Product features • Linear casing shape Functions • The required current output can be chosen by selecting the respective pin at the output terminal. Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: 0.2–1.5 mm² • Power factor at full load: > 0.97 • Max. working voltage (UOUT): 250 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) and up to 2 kV (between L/N and PE) • Electronic short-circuit protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: IP20 • Protection class I Dimensions Casing: M10 Length: 359 mm Width: 30 mm Height: 21 mm

Read more less

Pictured with Strain relief ( separate product  )  https://www.easy-controlgear.com/products/strain-relief-set-43x30mm-280001168 Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 250 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 17 W Up to 86 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Typical applications For linear/area lighting in office applications
