Driver LCA 60W 900–1750mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 60 W Up to 90 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

This is obsolete , an alternative will be sent  LED Driver 500ma Contast Current - Harvard - ELD500-1-2-NM12

Read more less

Constant current mode output Multiple levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full protection housing east installation IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable phase cut dimmable 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment 300-900mA Dimensions 155x 54x 20 EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature Tcase= -40~+60°C PDF Datasheet ELED-25-CT.pdf

Read more less

Constant current designWide input range 180~528VACOCP point adjustable through internal potentiometerProtections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warrantyMore Information Manufacturer Mean Well Output Wattage (W) 65 Output Current 500mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 13~130 Dimensions 189x 61.5x 36.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP65 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf

Read more less

Please see attached Data Sheet for specifications

Read more less

18-36V 700mA 25W Constant current driver Dimmable with most trailing edge dimmers CONSTRUCTION Polycarbonate FINISH White CLASS II IP RATING IP20 PRIMARY VOLTAGE 230V 50Hz LENGTH 120 mm HEIGHT 28 mm WIDTH 45 mm

Read more less

Driver LCBI 15W 350/500/700mA BASIC phase-cut lp advanced series Product description Dimmable via leading edge and trailing edge phase dimmers Output dimmed analogue (current amplitude) Dimming range typ. 5 to 100 % (depending on dimmer) Type of protection IP20 Push-in terminals Connecting cable, wire cross-section 0.5 – 1.5 mm² SELV 350, 500 or 700 mA output current Output power 15/16 W Nominal lifetime of 50,000 h (at max ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) 5 years guarantee Properties Casing: polycarbonate, white Compact dimensions Overload protection Short-circuit protection No-load protection

Read more less

Obsolete replaced by  https://www.easy-controlgear.com/products/hlg-150h-48a-mean-well-led-driver-hlg-150h-48a-150w-48v Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295 VAC) / Full rangeIP65 design for indoor or outdoor installationsCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)Output voltage and C.C level can be adjusted through internal potentiometer3 years warranty  More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 48V Dimmable (Type) No DC Output Adjustment A type can be adjusted by internal potentiometer Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf

Read more less

ELED-10P-C100-450T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • Dimming function: Triac/phase cut dimming • Work with leading or trailing edge Triac dimmer • (ON key: leading edge; 1 key: trailing edge) • AC input: 200-240VAC • Built-in active PFC function • Efficiency up to 75% • IP20 design for indoor installation • Full protection plastic housing easy installation • Protections: Short circuit/ Over load • Cooling by free air convection • Suitable for LED lighting and moving sign applications • Strong compatibility, flicker-free dimming Spec ELED-10P-C100-450T(C450mA) ELED-10P-C100-450T(C400mA) ELED-10P-C100-450T(C350mA) ELED-10P-C100-450T(C300mA) ELED-10P-C100-450T(C250mA) ELED-10P-C100-450T(C200mA) ELED-10P-C100-450T(C150mA) ELED-10P-C100-450T(C100mA) Wattage 10 10 10 10 10 8.4 6.3 4.2 Input Voltage 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC Output Current 450 400 350 300 250 200 150 100 Output Voltage 3~22 3~25 3~28 3~33 3~40 3~42 3~42 3~42 Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

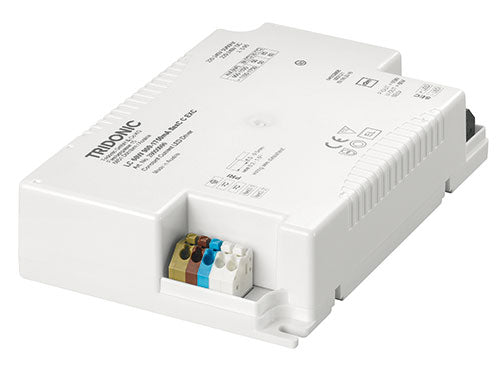

Driver LC 60W 900–1750mA flexC C EXC excite series Product description Constant current LED driver Adjustable output current between 900 and 1,750 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 60 W Up to 90 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces ready2mains (configuration via mains) Terminal blocks: 45° push terminals Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 Typical applications For downlight, spotlight and decorative applications   Data sheet   Order information Common data Technical data Downloads Links Certificates Accessories CAD Ordering data Type Article number Pack­ag­ing, carton Pack­ag­ing, pallet Weight per pc. LC 60W 900-1750mA flexC C EXC 28000696 10 pc(s). 720 pc(s). 0.205 kg

Read more less

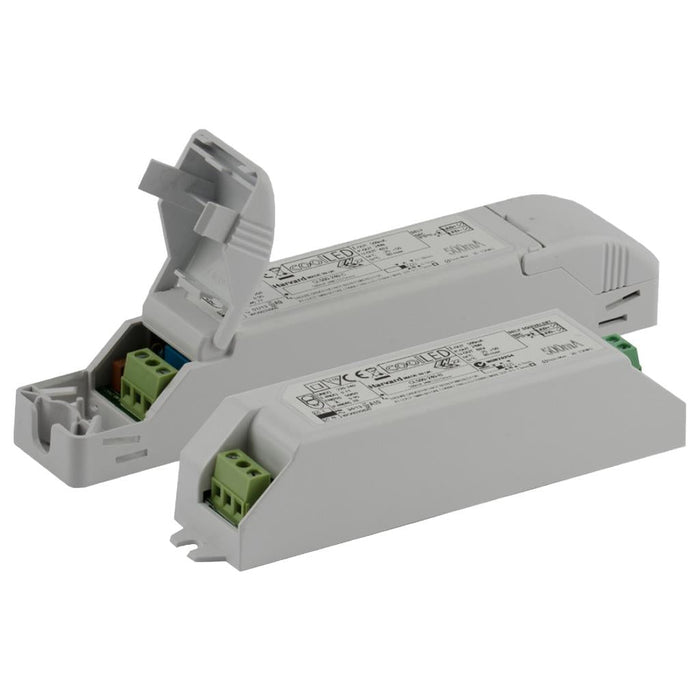

Obsolete, Please consider the below as a viable alternative   Alternative  LED Driver 1050ma Dali Harvard C/Clamp - CL1050D2-240-C

Read more less

Driver LCBI 25W 700mA BASIC phase-cut SR advanced series Product description Dimmable via leading edge and trailing edge phase dimmers Output dimmed analogue (current amplitude) Dimming range typ. 5 to 100 % (depending on dimmer) Type of protection IP20 Screw terminal Connecting cable, wire cross-section 0.5 – 2.5 mm² SELV 700 mA output current Output power 25 W Nominal lifetime up to 50,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) 5 years guarantee Properties Casing: polycarbonate, white Compact dimensions Overload protection Short-circuit protection No-load protection
