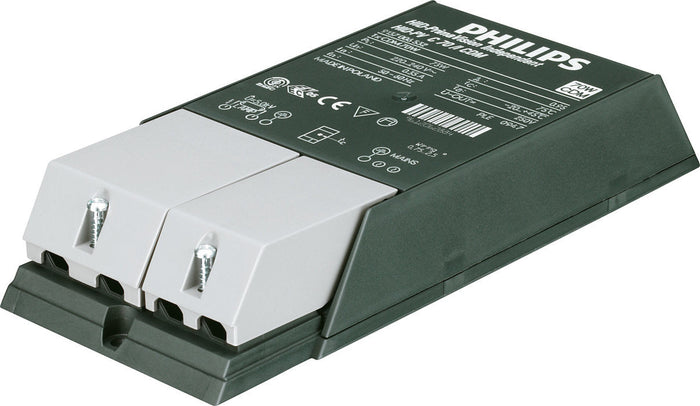

The Philips HID-PV C 70 /l CDM electronic ballast comes complete with strain relief and runs 1x70w metal halide lamps.this ballast is available as independent (/I) for independent use on a (false) ceiling, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps. Full Product Code: 872790085988100 Specifications General Information Remarks UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG Type version ng Lamp type CDM Number of lamps 1 piece/unit Suitable for outdoor use No Number of products on MCB (16 A type B) (nom.) 20 Automatic restart Yes Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Operating frequency (nom.) 0.14 kHz Power factor 100% load (nom.) 0.95 Ignition voltage (max.) 4.0 kV Ignition switch-off time (nom.) 18 min Mains voltage performance (AC) -10%-+6% Mains voltage safety (AC) -18%-+10% Earth leakage current (max.) 0.25 mA Inrush current width 0.33 ms Constant wattage deviation -3%/+3% Power losses (nom.) 7.0 W Inrush current peak (max.) 33 A Wiring Cable capacity output wires mutual (nom.) 150 pF Cable length from device to lamp 2.0 m Ballast contact wire cross section 0.50-2.50 mm² Connector type Insert System characteristics Rated ballast-lamp power 70 W Temperature T-ambient (max.) 45 °C T-ambient (min.) -20 °C T storage (max.) 75 °C T storage (min.) -25 °C T-case lifetime (nom.) 75 °C T-Case maximum (max.) 75 °C Mechanical and Housing Housing /I Approval and Application Active temperature protection Yes EMI 9 kHz ... 300 MHz CISPR 15 ed 7.2 Safety standard EN 61347-2-12 Quality standard ISO 9000:2000 Environmental standard ISO 14001 Harmonic current emission standard EN 61000-3-2 EMC immunity standard EN 61547 Vibration standard IEC68-2-6 F c Bumps standard IEC 68-2-29 Eb Humidity standard IEC 928-13 Approval marks CE marking ENEC certificate Temperature marking F Humming and noise level 37 dB(A) Product Data Full product code 872790085988100 Order product name HID-PV C 70 /I CDM 220-240V 50/60Hz NG EAN/UPC – product 8711500881717 Order code 85988100 Local order code PVC070ICDM SAP numerator – quantity per pack 1 Numerator – packs per outer box 12 SAP material 913700653266 SAP net weight (piece) 0.360 kg

Read more less

    ALTERNATIVE PLEASE TYPE IN PTI150I-OS The Philips HID-PV C 150 /l CDM electronic ballast comes complete with strain relief and runs 1x150w metal halide lamps.this ballast is available as independent (/I) for independent use on a (false) ceiling, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps.

Read more less

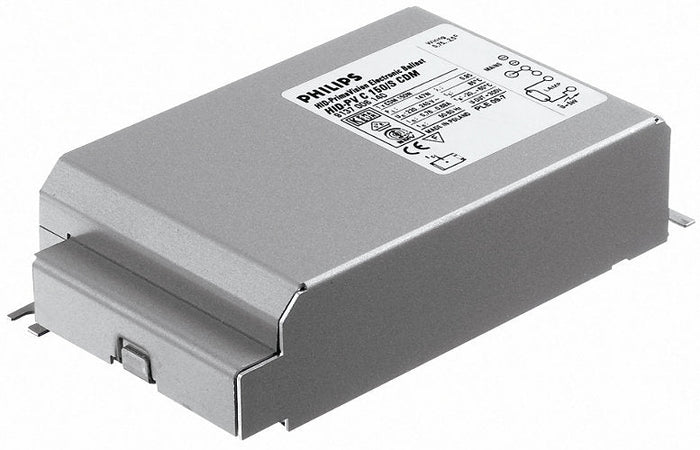

The Philips HID-PV C 150 /S CDM electronic ballast runs 1x150w metal halide lamps.this ballast is for use in luminaire, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps.   Specifications General Information Remarks UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG Lamp type CDM Number of lamps 1 piece/unit Suitable for outdoor use No Number of products on MCB (16 A type B) (nom.) 6 Automatic restart Yes Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Operating frequency (nom.) 0.14 kHz Power factor 100% load (nom.) 0.95 Ignition voltage (max.) 5.0 kV Ignition switch-off time (nom.) 20 min Mains voltage performance (AC) -10%-+6% Mains voltage safety (AC) -18%-+10% Earth leakage current (max.) 0.35 mA Inrush current width .50 ms Constant wattage deviation -3%/+3% Power losses (nom.) 10 W Inrush current peak (max.) 50 A Efficiency at full load [%] 93.2 % Wiring Cable capacity output wires mutual (nom.) 200 pF Cable length from device to lamp 2.0 m Wire strip length 10.0-11.0 mm Ballast contact wire cross section 0.50-2.50 mm² Connector type Insert System characteristics Rated ballast-lamp power 150 W Temperature T-ambient (max.) 60 °C T-ambient (min.) -20 °C T storage (max.) 85 °C T storage (min.) -25 °C T-case lifetime (nom.) 75 °C T-Case maximum (max.) 85 °C Mechanical and Housing Housing /S Approval and Application Active temperature protection Yes EMI 9 kHz ... 300 MHz CISPR 15 ed 7.2 Vibration standard IEC60068-2-6 F c Bumps standard IEC 60068-2-29 Eb Approval marks F-Marking CE marking VDE certificate VDE-EMV certificate CB Certificate Humming and noise level Inaudible Product Data Full product code 871150091052330 Order product name HID-PV C 150 /S CDM 220-240V 50/60Hz EAN/UPC – product 8711500910523 Order code 91052330 Local order code HIDPVC150S SAP numerator – quantity per pack 1 Numerator – packs per outer box 12 SAP material 913700614066 SAP net weight (piece) 0.360 kg Installation Diagrams HID-PV C 150 /S CDM 220-240 V 50/60 Hz HID-PV C 150 /S CDM 220-240 V 50/60 Hz
