Philips HF-P Ballasts

7 products

  • Philips HF-P 113 PL-C

    Philips Philips HF-P 113 PL-C

    The Philips HF-P 113 PL-C is a non-dimmable high frequency ballast to run:1 x 13w lamps.This ballast has a flicker free warm-start circuit,50% longer lamp life and an automatic stop circuit (safety stop). The Philips HF-P PL-T/C range is suitable for Department stores,Suprmarkets, Hotels and Hospitals, It is also for use in emergency installations with re-ignition.

    £20.28

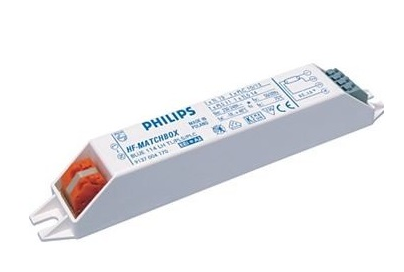

  • Philips HF-Matchbox Blue 109 LH TL/PL 53680830

    Philips Philips HF-Matchbox Blue 109 LH TL/PL 53680830

    The Philips HF-M Blue 109 LH TL/PL is a linear non-dimmable, high frequency ballast to run: 1 x 6 or 8 Watt T5 fluorescent tube 1 x 7/9 or 11 Watt PLS single turn compact fluorescent. This ballast has flicker free start,Multi lamp ballast, Compact power IC and energy saving of more than 25% compared with electromagnetic gear. The Philips HF-M Blue range is suitable for installations with emergency back up.

    £13.86

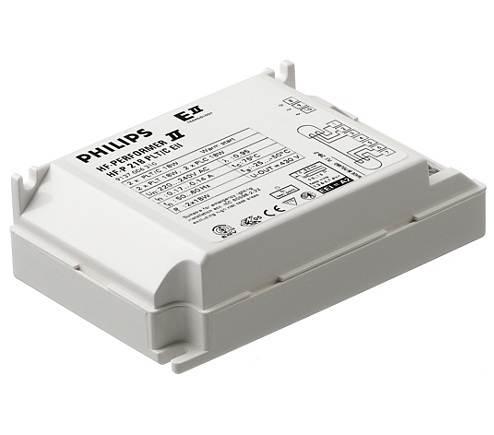

  • Philips HF-P 1 22-42 PL-T/C/L/TL5C

    Philips Philips HF-P 1 22-42 PL-T/C/L/TL5C

    The Philips HF-P 1 22-42 PL-T/C/L/TL5C is a non-dimmable high frequency ballast to run: between 22w to 42w lamps.This ballast has a flicker free warm-start circuit,50% longer lamp life and an automatic stop circuit (safety stop). The Philips HF-P PL-T range is suitable for Department stores,Suprmarkets, Hotels and Hospitals, It is also for use in emergency installations with re-ignition.

    £18.14

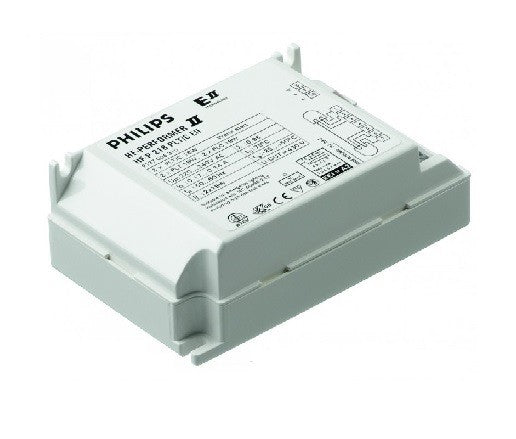

  • HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V Philips

    Philips HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V Philips

    HF-Performer II for PL-T/C/R/L/TL5C lamps HF-Performer II for PL-T/C/R/L/TL5C lamps HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V HF-Performer EII PL-T/C/R/T5c is a sustainable, slim and high-frequency electronic ballast for a wide range of CFL- ni applications. It is ideal for applications where high energy efficiency is required. The HF-Performer EII range has a robust design, meets all relevant international safety and performance standards and is energy-efficient (CELMA EEI A2). Lamp type PL-T/C/L/TL5C Number of lamps 1 piece/unit Automatic restart Yes Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Operating frequency (max.) - kHz

    £19.21

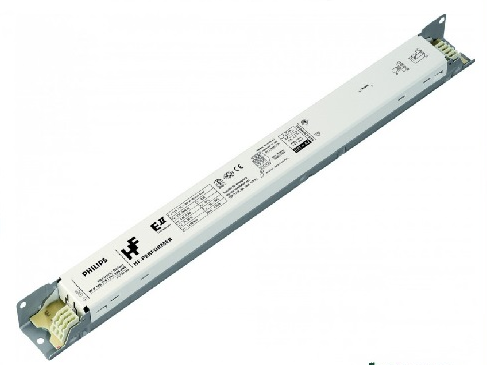

  • Philips HF-P 254/55w T5 HO/PLL

    Philips Philips HF-P 254/55w T5 HO/PLL

    The Philips HF-P 254/55 T5 HO/PLL is a fixed output high frequenct ballast for use with 2 x 54w flourescent lamps or 2 x 55w PL-L lamps. This ballast has a flicker free warm start, electrode heating cut off, Low energy consumption and automatic stop circuit (stop start). The Philips HF-P is often used in Department stores, Airports, Railway stations, Hotels and Hospitals. It is also suitable for emergency installations.   https://www.easy-controlgear.com/products/osram-qtp-optimal-2x54-58-4008321880253?_pos=1&_sid=c04cc9969&_ss=r

    £16.00

  • Philips HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V 91399930

    PHILIPS Philips HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V 91399930

    Specifications General Information Remarks UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG Application code EII Type version mk4 Lamp type PL-T/C/L/TL5C Number of lamps 2 piece/unit Number of products on MCB (16 A type B) (nom.) 12 Automatic restart Yes Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Operating frequency (max.) - kHz Operating frequency (min.) 42 kHz Operating frequency (nom.) 45 kHz Ignition method Warm Start Crest factor (max.) 1.7 Power factor 100% load (nom.) 0.95 Ignition time (max.) 0.52 s Mains voltage performance (AC) -8%-+6% Mains voltage safety (AC) -10%-+10% Earth leakage current (nom.) 0.5 mA Inrush current width 0.35 ms Constant wattage deviation -2%/+2% Ballast factor (nom.) 1 Power losses (nom.) 4.35-4.93 W Inrush current peak (max.) 31 A Wiring Connector type input terminals Insert Cable capacity output wires mutual (nom.) 100 pF Connector type output terminals Insert Cable length hot-wiring 0.75 m Wire strip length 7.5-8.5 mm Dual fixture master/slave Not applicable  [ Master/Slave oper. not applicable] Input terminal cross section 0.50-1.50 mm² Output terminal cross section 0.50-1.50 mm² Cable capacity output wires to earth (nom.) 100 pF System characteristics Rated ballast-lamp power 22-42 W Rated lamp power on PL-T/C 22/42 W Temperature T-ambient (max.) 50 °C T-ambient (min.) -25 °C T storage (max.) 80 °C T storage (min.) -40 °C T-case lifetime (nom.) 75 °C T-Case maximum (max.) 75 °C T-Ignition (max.) 50 °C T-Ignition (min.) -25 °C Emergency Operation Battery voltage lamp ignition 198-254 V Battery voltage lamp operation 176-254 Approval and Application Energy efficiency index A2 IP classification IP 20  [ Ingress Protection 20] EMI 9 kHz ... 30 MHz EN55015 EMI 30 MHz ... 1,000 MHz EN55022 level B Safety standard IEC 61347-2-3 Performance standard IEC 60929 Quality standard ISO 9000:2000 Environmental standard ISO 14001 Harmonic current emission standard IEC 61000-3-2 EMC immunity standard IEC 61547 Vibration standard IEC68-2-6 F c Bumps standard IEC 68-2-29 Eb Humidity standard EN 61347-2-3 clause 11 Approval marks CE marking ENEC certificate VDE-EMV certificate Temperature marking Yes Emergency standard IEC 60598-2-22 Humming and noise level Inaudible Product Data Full product code 871150091399930 Order product name HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V EAN/UPC – product 8711500913999 Order code 91399930 Local code HFP22242PLT/C/L Numerator – quantity per pack 1 SAP numerator – packs per outer box 12 Material no. (12 NC) 913700630866 Net Weight (Piece) 0.150 kg Installation Diagrams HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240 V

    £22.95

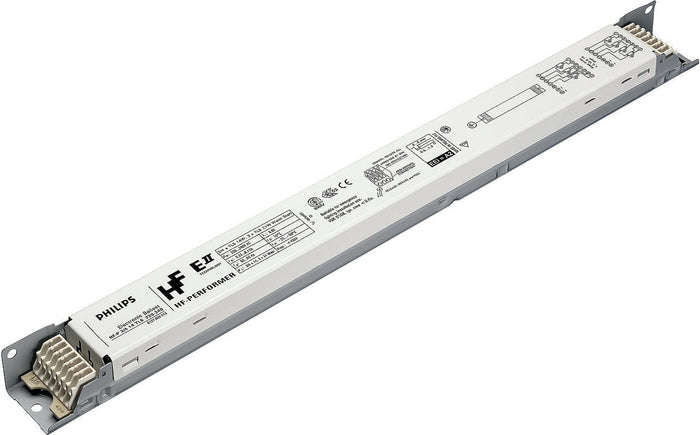

  • Philips HF-P 3/414 TL5 III

    Philips Philips HF-P 3/414 TL5 III

    The Philips HF-P 3/414 TL5 is a fixed output high frequenct ballast for use with 3/4 x 14w flourescent lamp. This ballast has a flicker free warm start, electrode heating cut off, Low energy consumption and automatic stop circuit (stop start). The Philips HF-P is often used in Department stores, Airports, Railway stations, Hotels and Hospitals. It is also suitable for emergency installations.

    £23.85
