Philips LED Drivers
-

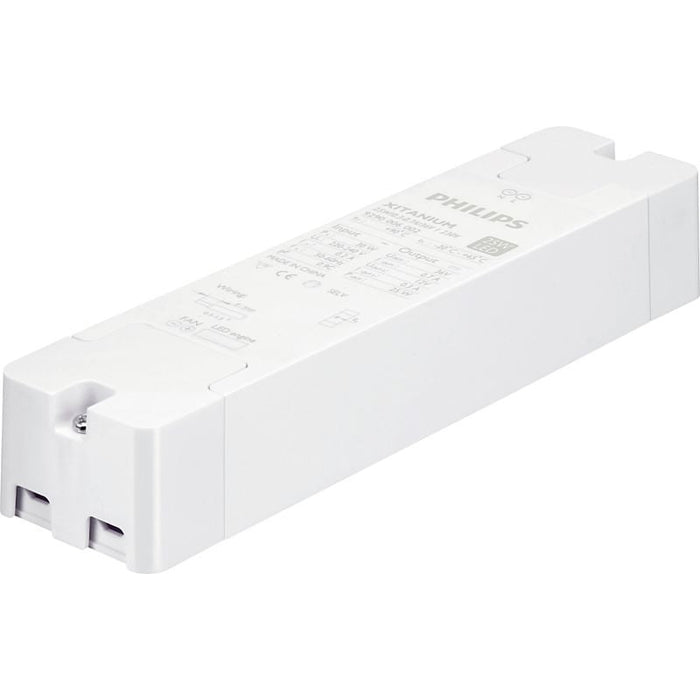

Philips Philips Xitanium 25W LH 0.3-1A 36V I 230v LED Driver OBSOLETE, ALTERNATIVE WILL BE SENT
This is the alternative which will be sent : https://www.easy-controlgear.com/products/ecxd1050-299-sr-186763-vossloh-schwabe?_pos=1&_sid=b84bea067&_ss=r This is a Philips Xitanium 25W LH 0.3-1A 36V I 230v is a new modern 3-in-1 housing design. The adjustable output current enables operation of various LED configurations from different LED manufacturers. This driver is dimmable using touch, DALI or Independent dimming.
£43.27
-
PHILIPS Xitanium 36W 0.3-1A 54V TD 230V
Operating and Electrical Output Current (Max) 1000 mA Output Power (Max) 36 W Output Power (Min) 10 W Output Current (Min) 300 mA Output Voltage (Max) 54 V Output Voltage (Min) 27 V Mechanical and Housing Housing Office 360x30x21 7p6p NFC Housing Dimensions 360 x 30 x 21 Product Data Full product code 871869655264300 Order product name Xitanium 36W 0.3-1A 54V TD 230V EAN/UPC - Product 8718696552643 Order code 929001503606 Numerator - Quantity Per Pack 1 Numerator - Packs per outer box 24 Material Nr. (12NC) 929001503606 Net Weight (Piece) 0.255 kg
£52.19
-
Philips Philips Xitanium 50w 0.7-1.5a 54v 230v LED Panel Driver
Philips Xitanium 50w 0.7-1.5a 54v 230v LED Panel Driver - This is part of the latest Xitanium Range from Philips. It can be used for various downlights up to 50w. It has an optimized strain relief compartment for quick and easy wiring and also with integrated loop through function to enable easy and simple installation.
£42.56
-

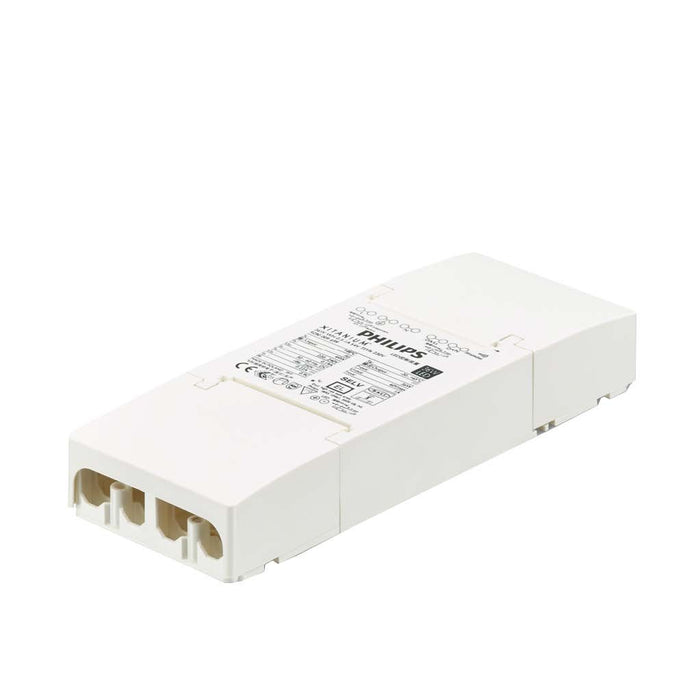

PHILIPS Philips Xitanium 36W WH 0.3-1.05A 54V Is G2 929001471106
Specifications Operating and Electrical Output Current (Max) 1050 mA Output Current (Min) 300 mA Output Voltage (Max) 54 V Output Voltage (Min) 24 V Mechanical and Housing Housing WH Independent Housing Dimensions 200 x 75 x 32 Product Data Full product code 871869961042500 Order product name Xitanium 36W WH 0.3-1.05A 54V Is G2 EAN/UPC - Product 8718699610425 Order code 929001471106 Numerator - Quantity Per Pack 1 Numerator - Packs per outer box 20 Material Nr. (12NC) 929001471106 Net Weight (Piece) 0.140 kg
£31.94
-
Philips Xitanium 20W/m 0.15-0.5A 48V 230V
Download Product Specification
£22.73
-
PHILIPS Xitanium 50W/m 0.7-1.5A 54V 230V 929001415306
Electrical input data Specification item Value Unit Condition Rated input voltage range 220...240 Vac Performance range Rated input voltage 230 Vac Rated input frequency range 50...60 Hz Performance range Rated input current 0.27 A @ rated output power @ rated input voltage Rated input power 58 W @ rated output power @ rated input voltage Power factor 0.9 @ rated output power @ rated input voltage Total harmonic distortion 20 % @ rated output power @ rated input voltage Efficiency ≥ 91 % @ rated output power @ rated input voltage Input voltage AC range 202...254 Vac Operational range Input frequency AC range 47.5...63 Hz Operational range Isolation input to output SELV Electrical output data Specification item Value Unit Condition Regulation method Constant Current Output voltage 24...54 Vdc Output voltage max. 60 V Maximum output voltage (rms) Output current 0.7...1.5 A Output current tolerance ± 5 % Output current ripple LF ≤ 4 % Ripple = peak / average, < 3kHz Output current ripple HF ≤ 30 % Output power 17...50 W Electrical data controls input Specification item Value Unit Condition Control method Fixed Wiring and Connections Specification item Value Unit Type Input wire cross-section 0.5...1.5 / 20...16 mm2 / AWG WAGO250 (pitch 3.5 mm), solid / stranded wire Input wire strip length 8.5...9.5 mm Output wire cross-section 0.5...1.5 / 20...16 mm2 / AWG WAGO250 (pitch 3.5 mm), solid / stranded wire Output wire strip length 8.5...9.5 mm Maximum cable length 0.6 m Total length of wiring including LED module, one way
£31.96
-

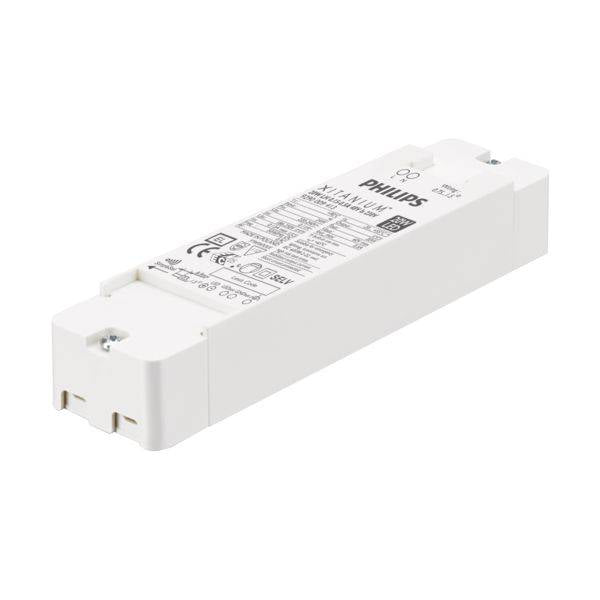

PHILIPS Xitanium 20W LH 0.15-0.5A 48V Is 230V 929000941306
Philips Xitanium/150mA 200MA 250MA 300mA 350mA 400MA 450mA 500mA.
£53.34
