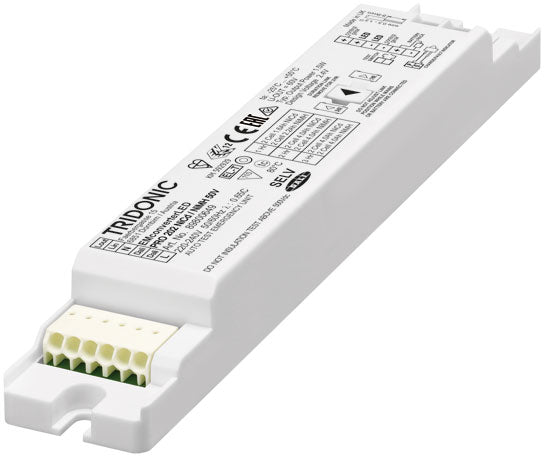

Self-contained emergency lighting LED driver with DALI interface
Non maintained operation
For LED modules with a forward voltage of 10 – 54 V
SELV for output voltage < 60 V DC
For luminaire installation
Compatible with Tridonic's LLE FLEX modules (ADV, EXC)
EM = Emergency
Nominal lifetime up to 100,000 h
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)

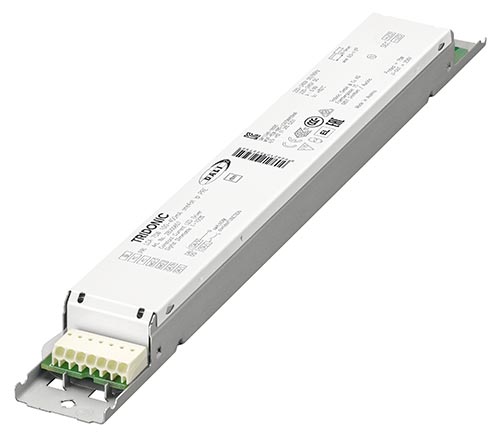

Dimmable built-in constant current LED driver
Output current adjustable between 100 – 400 mA
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Max. output power 75 W
Up to 92 % efficiency
Power input on stand-by < 0.15 W
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Low profile metal casing with white cover
Type of protection IP20
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
Flexible configuration via companionSUITE
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
Reliability proven by lifetime up to 100,000 h and 5 years guarantee
Typical applications
For linear/area lighting in office applications
replacement for the 28000134
TCI MINIJOLLY 20W LED Driver Mains dimmable, Multi Current 250-900Ma
Specification
Control Dimming
PHASE CUT / IGBT - TRIAC
Nominal Input Voltage
220...240
Height
22
Diameter
Input Current
250 mA
Input Current
300 mA
Input Current
350 mA
Input Current
400 mA
Input Current
450 mA
Input Current
500 mA
Input Current
550 mA
Input Current
600 mA
Input Current
650 mA
Input Current
700 mA
Input Current
750 mA
Input Current
800 mA
Input Current
850 mA
Input Current
900 mA
Output Voltage Minimum
15
Output Voltage Minimum
10
Output Voltage Minimum
5
Output Voltage Maximum
48
Output Voltage Maximum
44
Output Voltage Maximum
40
Output Voltage Maximum
36
Output Voltage Maximum
33
Output Voltage Maximum
31
Output Voltage Maximum
29
Output Voltage Maximum
27
Output Voltage Maximum
25
Output Voltage Maximum
23
Output Voltage Maximum
22
IP Rating
IP 20 (Independent Use)
Output Power Max
20
Output Power Min
11
Width
111
Depth
52
Used to be the 122402

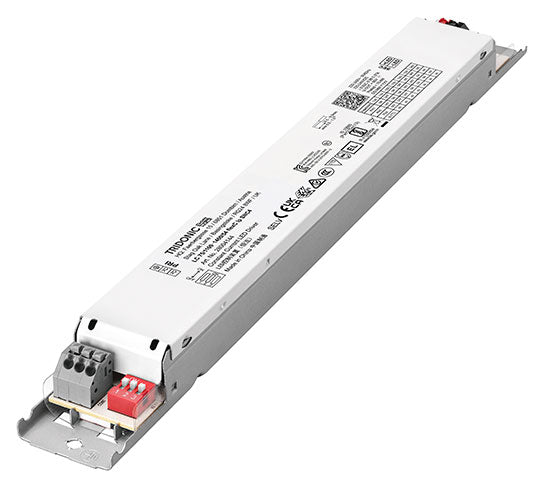

Tridonic LC 75/1100-1400/54 flexC lp SNC4 28004144
Constant current LED driver for luminaire installation
3 pin DIP switch version valid from production date: 20.12.2024
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
Selectable fixed output current 1,100, 1,150, 1,200, 1,250, 1,300, 1,350 and 1,400 mA (pre-selected current 1,400 mA)
Max. output power 75.6 W
Up to 89 % efficiency
Nominal lifetime up to 100,000 h

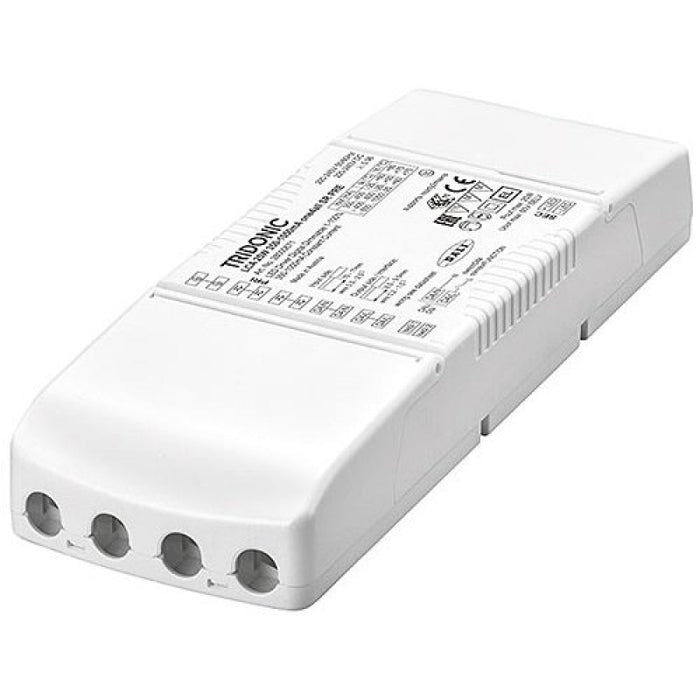

Driver LCA 25W 350–1050mA one4all C PRE
premium series
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Dimmable built-in constant current LED driver
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 350 – 1,050 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 25 W
Up to 89 % efficiency
Power input on stand-by < 0.17 W
Nominal lifetime up to 100,000 h
5 years guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
Reliability proven by lifetime up to 100,000 h and 5 years guarantee
Typical applications
For linear/area lighting in office applications
This driver covers nearly all non dimmable constant current options up to 1050MA
Dimming: NOT DIMMABLE
Additional technical features: RIPPLE FREE, ACTIVE PFC (pf>0.9), SELV <>
Approvals: KEMAKEUR, ENEC, CCC, RCM, CE, EAC, UKCA,
Plastic case: IP 20 (Independent Use)
Minimum cut-out hole diameter: 50 mm
Size: 146 x 22 x 43 mm
Product Information Download
Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warrantyMore Information
Manufacturer
Mean Well
Output Wattage (W)
65
Output Current
350mA
Dimmable (Type)
1-10VDC, PWM signal, resistance
Output Voltage Range (V)
18~186
Dimensions
189x 61.5x 36.8
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
Input Voltage
180~528VAC, 254~747VDC
Safety Standards
UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP67 approved
Output Voltage Options
Single
Working Temperature
-30~+60°C (Refer to "Derating Curve")
PDF Datasheet
HVGC-65-spec.pdf
929001471006
Specifications
Operating and Electrical
Output Current (Max)
540 mA
Output Current (Min)
150 mA
Output Voltage (Max)
54 V
Output Voltage (Min)
24 V
Mechanical and Housing
Housing
WH Independent
Housing Dimensions
200 x 75 x 32
Product Data
Full product code
871869961040100
Order product name
Xitanium 20W WH 0.15-0.5A 54V Is G2
EAN/UPC - Product
8718699610401
Order code
929001471006
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
20
Material Nr. (12NC)
929001471006
Net Weight (Piece)
0.140 kg
Leading edge & Trailing Edge Dimmable
Constant Current Design
Protections: Short circuit/ Over Voltage/ Overload/ Over Temperature
Other features:
Power Factor >0.9
Class II
3 years warrantyMore Information
Manufacturer
Eaglerise
Output Wattage (W)
7
Output Current
700mA
Dimmable (Type)
No
Output Voltage Range (V)
11.5~17.5
DC Output Adjustment
No
EMC Standards
EN55015; EN61000-3-2 Class C; EN61000-3-3, EN61547; EN61000-4-2 – Performance Criteria B; EN61000-4-5 – 500V; Performance Criteria C
Input Voltage
220-240VAC
Safety Standards
EN61347-1, EN61347-2-13
Working Temperature
-10~+50°C
EUP150T Series Features:
Single channel constant voltage output
Support Leading edge (TRIAC) and Trailing edge (ELV) Dimmer
Other features:
Dimming range from 40VAC to 240V AC
Dimming effect smooth, no flicker
High efficiency: up to 88%
Over power protection; Over voltage protection; Short circuit protection
Suitable for indoor LED lighting application
Spec
EUP150T-1H12V-0
EUP150T-1H24V-0
Wattage
150
150
Input Voltage
220-240VAC
220-240VAC
Output Current
12.5
6.25
Output Voltage
12V
24V
Output Voltage Options
Single
Single
Dimensions
310 x 60 x 45
310 x 60 x 45
Working Temperature
-20 - +50°C
Safety Standards
CE
Built-in active PFC function
Dali Dimmable
Protections: Short circuit/ Over Current/ Over Loading
Other features:
IP20 Design for Indoor Installations
Dimming function : Built-in Dali interface push dimming
Suitable for intelligent LED lighting
Suitable for dry locations
3 years warrantyMore Information
Manufacturer
Ecopac Power
Output Voltage
24
Dimensions
80x 36x 23
EMC Standards
Compliance to EN55015, EN61000-3-2-3 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11(surge 4KV)
Input Voltage
100-265VAC
Safety Standards
EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+60°C
PDF Datasheet
ELED-10-D UP.pdf
