ELT Ballasts
-

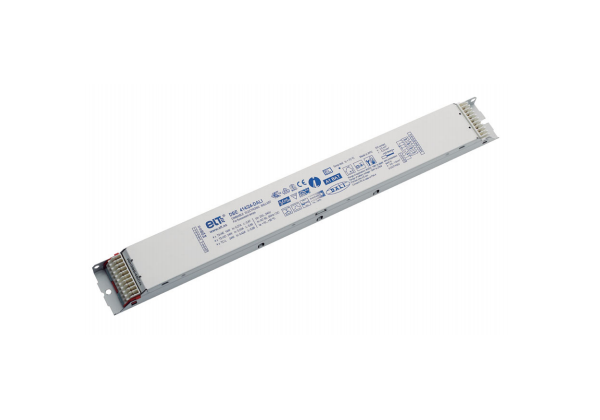

EasyControlGear ELT BE 3/4x14w HF T5 Ballast
ELT BE 3/4x14w ballast to run 3 or 4 x 14w, T5 lamps. This ballast has a normal average life of 50,000 hours. Dimensions: W40 x H28 x L230mm This class 1 ballast has preheated starting function for longer lamp life and also comes with an automated cut off function if lamp failure occurs. Connector cross section is 0.5 - 1.5 mm2.
£16.00
-
ELT ELT 18 W, 24 W, 30 W, 36 W, 39 W Electronic Compact Fluorescent Lighting Ballast, 220 → 240 V
The ELT BE-436-2 is a non dimmable high frequency ballast to run: 3 or 4 x 18/30/36w T8 Fluorescent Tubes, 18/36w long single turn compact fluorescent tubes or 24w T5 Fluorescent Tubes. This ballast can also be used to run 3 x 39w T5 fluorescent tubes. Product Details 3 & 4 Lamp Electronic Ballast ELT 3 & 4 lamp electronic high frequency ballasts for controlling T8 / TC-L / T5 fluorescent lamps. BE 436-2 ballasts con be connected to three or four lampsModel BE 436 is designed with independent lampsClass I ballast for built-in useIgnition with preheating in cathodes for a long life in the lamp, without flashes or flickeringConstant total power and stabilized luminous fluxHigh frequency operationHigh energy efficiencyCorrected stroboscopic effectAllows the use of Class I and Class II luminaires without screening to earth in the lampsPermitted voltage 198-264V, 50-60HzSupports 2 hours at 350V (A/C)Rapid connection connector with fixing spring. Circular conductor section: 0.5-1.5 mm2 Standards EN 61347-1-2-3, EN 60929, EN 61000-3-2, EN 55015, EN 61547. Specifications Attribute Value Wattage 18 W, 24 W, 30 W, 36 W, 39 W Ballast Type Electronic Supported Lamp Shape T5, T8, TC-L Supported Lamp Type Compact Fluorescent, Fluorescent Voltage Rating 220 → 240 V Dimmable No High Frequency Yes Length 360 mm Height 28mm Minimum Operating Temperature -20°C Maximum Operating Temperature +50°C
£42.64
