This item is now obsolete  Driver LC 20W 350mA fixC C SNC essence series Product description Fixed output built-in LED driver Constant current LED driver For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current 350 mA Max. output power 18.9 W Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth)

Read more less

Driver from the prestigious company LIFUD, specially designed for LED panels, LED downlights, LED panels and LED ceiling lights because it incorporates the Jack ... An LED driver is in charge of transforming the alternating current of the electrical network into direct current suitable to make the LED chips shine. To know if a driver is going to work with our luminaire, PCB or panel we must consult the voltage and the output current of the driver. Characteristics of LIFUD Driver Connection Jack 33-40V DC 32W This driver has a multi-voltage output which means that it can deliver a constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. Once the driver is powered up, the voltage will be automatically adjusted and the voltage at the output will be constant. Its power factor is very high, making it a very efficient driver.

Read more less

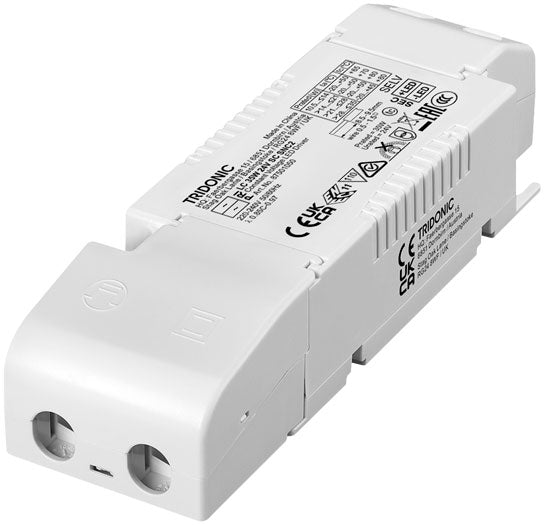

Driver LC 15W 300/350mA fixC SC SNC2 essence series Product description Fixed output LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Independent LED driver with cable clamps Constant current LED driver For luminaires of protection class II Temperature protection as per EN 61347-2-13 C5e Output current 300 or 350 mA Max. output power 15 W Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 0.5 kV (L to N) Surge protection voltage 1 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

Driver LCBI 10W 180/350/500mA PHASE-CUT/1–10V lp advanced series Product description Dimmable built-in constant current LED driver Constant current LED driver Dimmable via leading edge and trailing edge phase dimmers Dimmable via 1 ... 10 V Output dimmed analogue (current amplitude) Dimming range typ. 10 to 100 % (depending on dimmer) For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e SELV Output current 180, 350 or 500 mA Output power 10 W Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Push-in terminals Functions Overload protection Short-circuit protection No-load protection No output current overshoot at mains on/off

Read more less

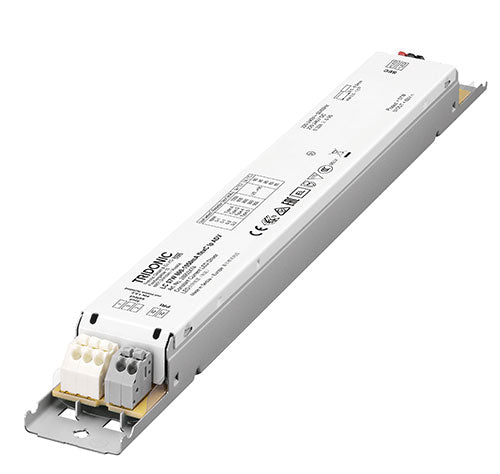

Driver LC 38W 500-700mA flexC lp ADV advanced series SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Output current adjustable between 500 – 700 mA Temperature protection as per EN 61347-2-13 C5e Max. output power 38 W Up to 85 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Suitable for emergency escape lighting systems acc. to IEC 50172 Typical applications For linear/area lighting in office applications

Read more less

Product description Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) Temperature protection as per EN 61347-2-13 C5e Output current 350 mA Max. output power 10 W BIS approval mark for art. no.: 87500802, 87500804. Nominal lifetime up to 50,000 h Replacement  for the 87500240 and 87500581

Read more less

10 W – 42 W constant current LED driver 120 mA – 350 mA adjustable current output Lifetime up to (h): 100000 Product number: 5 527 001 More information: EFFICIENT Datasheet Voltage range (V): 198–264 DC range (V): 176–280 Max temperature at Tc point (°C): 75 Ambient temperature range: –25 °C ... +50 °C IP rating: IP20 Lifetime up to (h): 100000

Read more less

Product description Independent constant current LED driver Dimmable via DALI-2 Dimming range 1 to 100 % (min. 5 mA) Output current adjustable between 450 – 1,050 mA with DALI or NFC Max. output power 45 W Up to 88 % efficiency Power input on stand-by < 0.5 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces Near field communication (NFC) one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2) Functions Adjustable output current in 1-mA-steps (NFC, DALI-2) Constant light output function (CLO) Protective features (overtemperature, short-circuit, overload, no-load) Surge protection voltage 1 kV (L – N) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Flexible configuration via companionSUITE (NFC, DALI-2) Application-oriented operating window for maximum compatibility Typical applications For applications in downlight and decorative luminaires

Read more less

TECHNICAL DATA Electrical data Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage AC 198…264 V Total harmonic distortion < 10 % Power factor λ 0.98 ECG efficiency 90 % 1) Device power loss 4.9 W 2) Protective conductor current <0.7 mA Inrush current < 16 A 3) Max. ECG no. on circuit breaker 10 A (B) 16 Max. ECG no. on circuit breaker 16 A (B) 25 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 25…42 V U-OUT (working voltage) 60 V Nominal output current 800 / 900 / 1050 / 950 mA Output current tolerance ±7.5 % Output ripple current (100 Hz) < 5 % Nominal output power 20…44 W Galvanic isolation SELV

Read more less

The Tridonic LCU 100/12 EO20 is a 100w 12v constant voltage LED driver with a universal input voltage range and a constant output voltage. This driver has an over temperature and overload protection, short circuit shutdown feature and automatic restart. This driver has a 5 year warranty. Tridonic article number: 24166327

Read more less

More Information Manufacturer Ecopac Power Output Wattage (W) 60 Output Voltage 12V Dimmable (Type) No Dimensions 116.3 x 51 x 31.7 mm ECD-65-C12-C14

Read more less

The Ecopac Power ECP60-24VFP-1 slimline constant voltage LED driver is ideal for concealment where space is restricted, such as hiding behind a strip. Short circuit, over temperature and over loading protection are all standard features. Ecopac Power LED Drivers are supplied with a 3 year warranty.  Other features: Slim line LED Driver Universal AC input/ Full range 180-264VAC Input Frequency 50/60Hz 24V Constant voltage output IP66 3 years warranty More Information Manufacturer Ecopac Power Output Wattage (W) 60 Output Voltage 24V Dimmable (Type) No DC Output Adjustment N/a EMC Standards EN55015, EN61000-3-2; EN61547 Input Voltage 180-264VAC Safety Standards EN61347-1, EN61347-2-13 Working Temperature -20~+45°C View Datasheet

Read more less
