Constant voltage design Built-in active PFC function Protections: Short circuit/ Overload/ Overheat Input Voltage: 200 – 240VAC Cooling by free air convection Output Power: 50W Compact and light-weight plastic case Working Temperature: -20C to +45C 3 year warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 50 Output Voltage 24V Dimmable (Type) No Dimensions 185x 64x 22 EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61547 Input Voltage 200~240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet ECP50_Series_1.pdf

Read more less

The LIFUD TRIAC Dimmable Driver Jack connection Output 25-40 DC 14W LF-GDE014YG  of the prestigious brand LIFUD is specially designed for LED panels, LED downligh because it incorporates the universal jack connector. A LED driver transforms the alternating current from the electrical network into direct current suitable for shining LED chips. To know if a driver is going to work with our luminaire, PCB or panel we must consult the voltage and the output current of the driver. Characteristics of the LIFUD TRIAC Dimmable Driver Jack connection Output 25-40 DC 14W LF-GDE014YG  This driver has a multi-voltage input. This means that it is able to withstand ups and downs in line voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. Once the driver is powered, the voltage will be automatically adjusted and the output voltage will be constant. The TRIAC Dimmable driver must be used in conjunction with a TRIAC LED regulator which will allow us to easily select the desired light intensity. Its power factor is very high, making it a very efficient driver

Read more less

Leading edge & Trailing Edge Dimmable Constant Current Design Protections: Short circuit/ Over Voltage/ Overload/ Over Temperature Other features: Power Factor >0.9 Class II 3 years warrantyMore Information Manufacturer Eaglerise Output Wattage (W) 12 Output Current 350mA Dimmable (Type) No Output Voltage Range (V) 23~35 DC Output Adjustment No EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN61547; EN61000-4-2 – Performance Criteria B; EN61000-4-5 – 1000V; Performance Criteria C Input Voltage 220-240VAC Safety Standards EN61347-1, EN61347-2-13 Working Temperature -10~+50°C PDF Datasheet EIP012.pdf

Read more less

AC phase-cut dimmingWorks with leading edge and trailing edge TRIAC dimmersProtections: Short circuit/ Over temperatureOther features:180~295VAC inputConstant current designFully isolated plastic caseBuilt-in active PFC functionIP30 designClass 2 power unit/ Pass LPSIsolation class II, no F.G.Cooling by free air convection3 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 60 Output Current 700mA Dimmable (Type) AC phase-cut Output Voltage Range (V) 50~86 Dimensions 128x 60x 31.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~295VAC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13 independent, IP30 approved Output Voltage Options Single Working Temperature -30~+50°C (refer to output derating curve) PDF Datasheet PCD-60-spec_2.pdf

Read more less

Driver LC 14W 700mA fixC pc SR SNC2 essence series Product description Dimmable constant current LED driver (SELV) Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) Dimmable via leading edge and trailing edge phase dimmers Dimming range 5 to 100 % (depending on dimmer) For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711 Max. output power 14 W Output current 700 mA Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Push-in terminals 2 separate strain relief parts for input and output cables with highly robust clamps Functions Overload protection Short-circuit protection No-load protection No output current overshoot at mains on/off

Read more less

LS-30 LI Series Features: Constant Voltage design Input Voltage 220-240VAC Other features: Protections: short circuit/over load/over voltage IP20 Ingress protection Flicker Free Power Factor b %0.9 Efficiency b %87% Class II, SELV 3 years warranty Wattage 30 30 Input Voltage 220-240VAC 220-240VAC Output Current 2.5A 1.25A Output Voltage 12V 24V Output Voltage Options Single Single Dimensions 142 x 45 x 30 142 x 45 x 30 Working Temperature -10 - +45°C Safety Standards EN 61347-1; EN61347-2-13 EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria

Read more less

Product description Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) Temperature protection as per EN 61347-2-13 C5e Output current 350 mA Max. output power 10 W BIS approval mark for art. no.: 87500802, 87500804. Nominal lifetime up to 50,000 h Replacement  for the 87500240 and 87500581

Read more less

18-35V 350mA 1-12W Constant current driver Dimmable with most trailing edge dimmers LENGTH 98 mm HEIGHT 22 mm WIDTH 39 mm

Read more less

https://www.vossloh-schwabe.com/fileadmin/perfion/files/CC-EasyLine-DIP-switch-C-R5_186841-186842-186843_EN.pdf   Dimensions • Casing: K25 • Length: 97 mm • Width: 43 mm • Height: 29.5 mm   EasyLine DIP switch C-R5 Product features • Compact casing shape Functions • Selectable current output by dip-switch Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm² • Power factor at full load: > 0.98 • Open circuit voltage (Umax.): 60 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) • Electronic short-circuit protection • Overload protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: IP20 • Protection class II • SELV Packaging units

Read more less

Built-in 0~10Vdc and PWM signal dimming function Output current level selectable by DIP switchProtections: Short circuit / Over voltage / Over temperature Other features: 180~295VAC input only Built-in active PFC function Protections: Short circuit / Over voltage / Over temperature Cooling by free air convection Fully isolated plastic case No load power consumption <0.5W Class II power unit, no F.G. Logarithm or linear dimming curve selectable (meet IEC62386-207) Built-in 0~10Vdc and PWM signal dimming function Power supplies synchronization function up to 10 units Suitable for indoor LED lighting applications 3 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 25 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 105x 68x 23 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~295VAC, 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-25-SPEC.PDF

Read more less

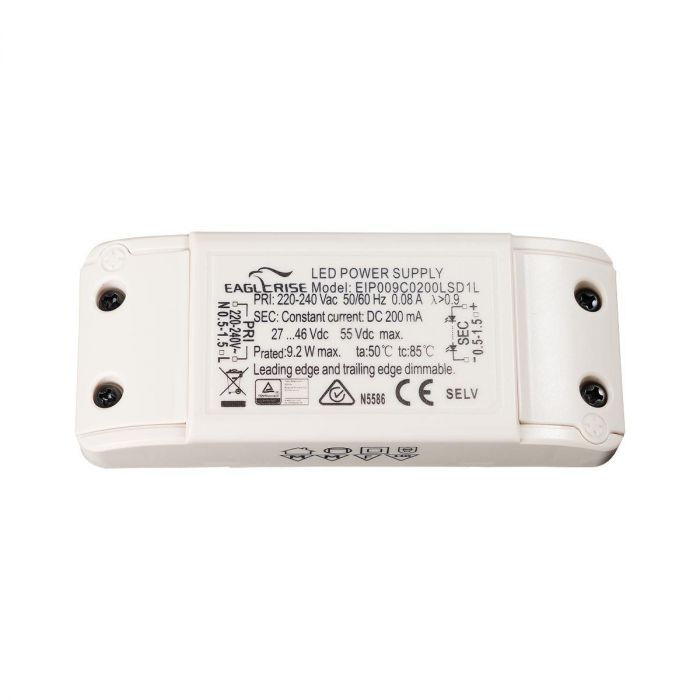

OBSOLETE YOU WILL BE SENT A EUP12T-1HMC-O    Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current range 200-700mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

Read more less

Ansell Lighting ADDIM100/24V ADDIM100/24V 100W 24V IP20 Triac Dimmable LED DriverAnsell Lighting is a well-known brand in the production of lighting fixtures for both indoor and outdoor use. Products from Ansell Lighting are utilised in retail, commercial, and industrial settings. Their LED fixtures incorporate the newest energy-saving technologies.
