Driver LCA 75W 900–1800mA one4all lp PRE premium series SELV Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 900 – 1,800 mA Max. output power 75 W Up to 91 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

Please select the MA rating you will be running it at and we will include the correct resistor   Product description Independent fixed output LED driver For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Adjustable output current between 700, 900 and 1,050 mA Max. output power 42 W Up to 88 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces Input terminals: 0° screw terminals Output terminals: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Burst protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 300mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 300mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

Read more less

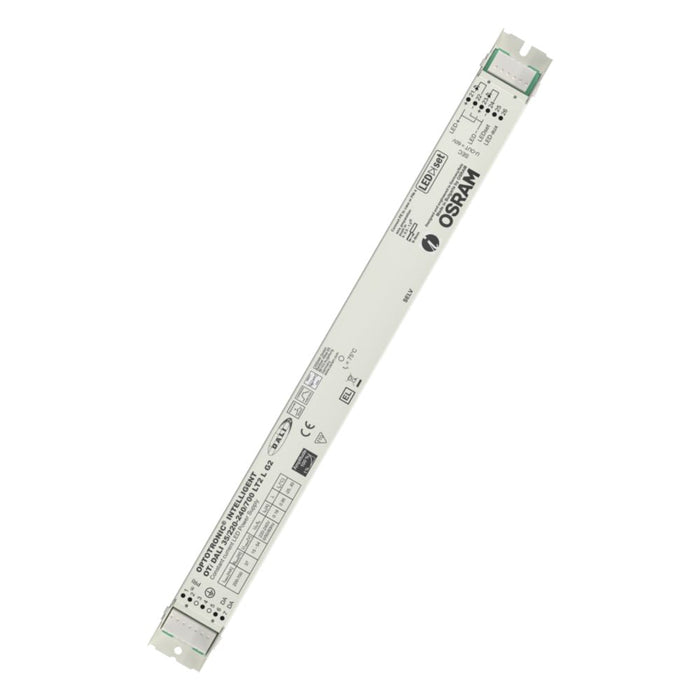

Obsolete,please click on the below for the latest variant   Latest Version  Product family benefits Intelligent power matching thanks to Smart power supply Slim form factor for mounting on the cove or in linear luminaires Minimized flicker thanks to high PWM frequency Suitable for installation in emergency lighting systems according to EN 60598-2-22 Available as Tunable White version (DALI Device Type 8) DALI message detection "LED Module failure" IP rating: IP20 Areas of application Cove lighting, wall washer, corridor, handrail Suitable for use in luminaires of protection class I and II Equipment / Accessories Suitable for 24 V LED modules The OSRAM constant voltage power supplies with DALI, enable you to maximize any design’s potential and enjoy flicker-free light due to a high PWM frequency, dimmable to between 0.1 and 100 % with TouchDIM. Use from 1 to 4 channels and benefit from DALI message detection of LED module failure. The slender form of these drivers makes them ideal for use when you need to install LED lighting in tight spaces or linear luminaires, for example in coves, corridors and handrails, or for wall washing. They are suitable for 24 V LED modules and for use with luminaires of protection classes I and II. Product family features Dimmable via Touch DIM (if supported) LED driver whose output power can be shared arbitrarily among the 2 or 4 channels Dimming range: 0…100 % Line frequency: 0 Hz | 50 Hz | 60 Hz

Read more less

Driver LC 53W 250-350mA flexC lp ADV advanced series non-SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 250 – 350 mA Max. output power 53 W Up to 90.5 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For linear/area lighting in office applications

Read more less

Obsolete replaced by 28002497, this what you will be sent . if you know what Ma you are using you may need to order  the relevant resistor  . The Tridonic LCI 42w 900mA TEC SR LED driver is a fixed output, constant current LED driver with a maximum output power of 42w. These drivers have an average life of 50,000 hours and a 5 year guarantee. The LCI 42w 900ma TEC has over temperature and overload protection, as well as short circuit and no-load protection. Tridonic article number: 87500246 Obsolete replaced by 28002497, this what you will be sent . if you know what Ma you are using you may need to order  the relevant resistor  .

Read more less

Constant Voltage output Fully isolated Short circuit, over current and over voltage performances up to 80% efficient Fire resistant plastic cover Compatible with leading and trailing edge dimmers 10 ~ 100% Dimming load 10 ~ 100% Dimming range Mains Dimmable Push terminals for easy installation IP20 design for indoor use 2 years warranty

Read more less

186842   EasyLine DIP switch C-R5 Product features • Compact casing shape Functions • Selectable current output by dip-switch Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm² • Power factor at full load: > 0.98 • Open circuit voltage (Umax.): 60 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) • Electronic short-circuit protection • Overload protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: 21 ECXe 700.345 186842 220–240 120 < 16 / 100 500 23–42 < 10 89 < 5 25.2 140 600 27.3 150 650 29.4 160 700

Read more less

AN12VPWM-20     DRIVER LED PWM-12v 1-10v DIMMING IP20 TRUELUX For SORAA LAMPS DATASHEET MODEL: AN12VPWM20 TYPE: Constant Voltage DIMMING CONTROL: 0/1-10V OUTPUT VOLTAGE: 12V OUTPUT CURRENT: 1.66A DIMMING RANGE: 1-100% RATED SUPPLY VOLTAGE: 220 - 240V AC MAX LOAD: 20W

Read more less

Constant voltage design Built-in active PFC function Protections: Short circuit/ Overload/ Overheat Input Voltage: 200 – 240VAC Cooling by free air convection Output Power: 50W Compact and light-weight plastic case Working Temperature: -20C to +45C 3 year warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 30 Output Voltage 24V Dimmable (Type) No Dimensions 158x 51x 17 EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61547 Input Voltage 200~240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet ECP30_Series.pdf

Read more less

Product description Independent fixed output LED driver For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Adjustable output current between 700, 800 and 1,050 mA Max. output power 35 W Up to 87.5 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces Input terminals: 0° screw terminals Output terminals: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Burst protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

obsolete the latest alternative and what you will be sent is this
