1x14-35w T5 HF Dali Dimmable Ballast - EL1X14-35IDIM - Helvar DALI controllable electronic ballast Input voltage: 220 V – 240 V Lamp type: T5 (14 W / 21 W / 28 W / 35 W), T5-eco (14 W / 21 W / 28 W / 35 W), TC-L (26 W / 28 W) Lifetime up to (h): 50000 Dimming range: 1 % – 100 % Warm start

Read more less

This Philips HF-R TD 1 14-35 T5 dimmable ballast runs between 1 x 14w - 35w T5 fluorescent tubes. This ballast's lamp power can be regulated from 1% to 100%, automatic stop start, automatic restart after lamp replacement, up to 75% reduction in energy consumption and quick programme flicker free start.The Philips HD-f ballasts are commonly used in offices. These units are for use with installations with emergency back up.

Read more less

obsolete , as long as you are using the dali feature please order the below  DALI Alternative The Tridonic PCA 2x26/32/42 TC ECO is a high frequency dimmable ballast to run:  2 x 26w Double Turn Compact Fluorescent Lamps 2 x 26w Triple Turn Compact Fluorescent Lamps 2  x 32w Triple Turn Compact Fluorescent Lamps 2 x 42w Triple Compact Fluorescent Lamps   Tridonic part number: 22185121

Read more less

1 x 58W Switchstart Choke - LN58.116 Standard ballast/ChokeVacuum-impregnated with polyester resinPush-in terminal for leads: 0.5 - 1 mm²For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5Protection class ILamp type: TC-DD, T-UOutput [W]: 58 for compact fluorescent lamps T-U (2G13)Voltage [V]: 230Frequency [Hz]: 50Shape: 28 × 41 mmDimensions (a × b × c): 190 × 180 × 92 mmEnergy efficiency: B2

Read more less

Vossloh Schwabe 14-35 Watt Twin High Frequency T5 Ballast from Vossloh Schwabe Model: ELXC235.857 Vossloh Schwabe 14-35 Watt Twin High Frequency T5 Ballast Technical Specifications Control Gear Type High Frequency Accessory Type Ballast Wattage 35 W Manufacturer Vossloh Schwabe Dimming? Non-Dimmable No. Of Lamps Twin (2x) Fixing Centers 350mm Height 20 mm Lamp 2 x 14/21/28.35 watt Length 360 mm Type Control Gear Terminals 7 Width 30 mm Compatible Lamp Type T5 Control Gear Technology Fluorescent

Read more less

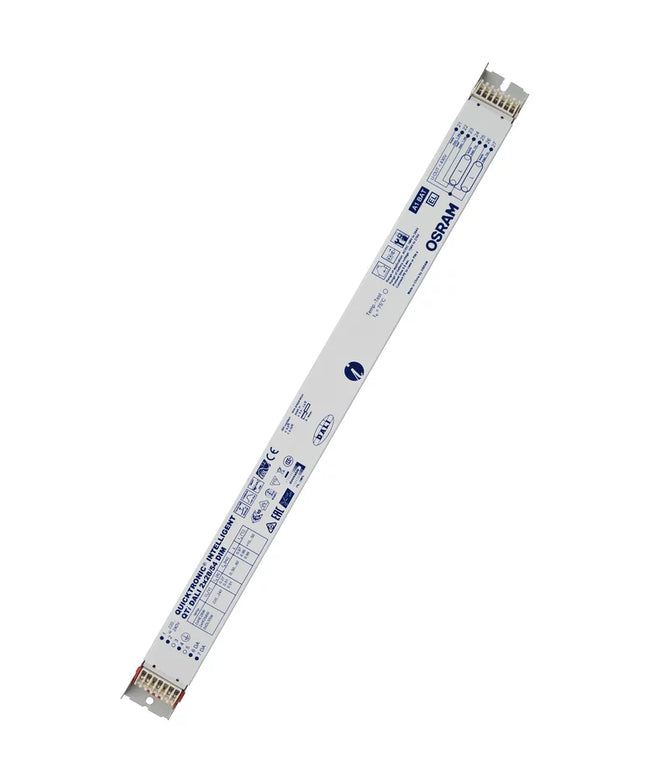

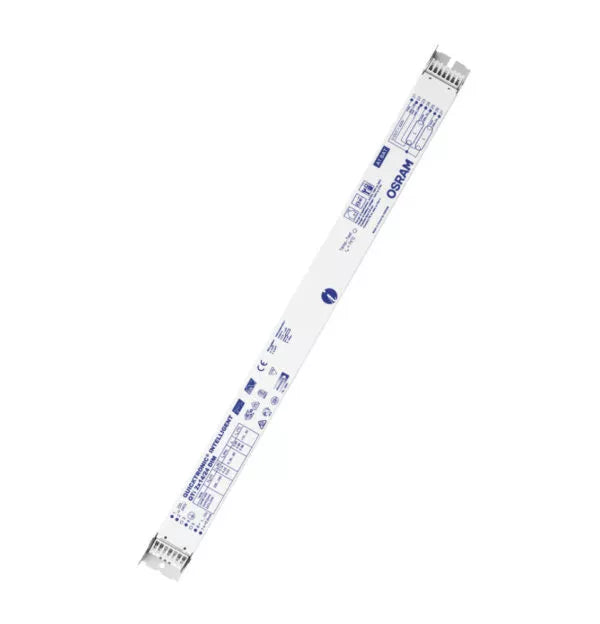

Osram QTi DALI 1X21/39 DIM 4050300870366 Product family features   Corridor function for direct connection of ECG to common motion sensor   Corridor function with pre-programmed light program   Touch DIM function for free parameterization of light value and turn on time   Fit for SMART GRID for feedback of consumed mains power and lamp operating hours   Fit for emergency function for automatic detection of emergency lighting by ECG   Very low standby power consumption: < 0.5 W   Lifetime: > 100,000 h (for T = 65 °C at Tc)   Very high number of switching cycles: up to 300,000   Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)   POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime   Line frequency: 0 Hz, 50…60 Hz, rectified AC Product family benefits – System+ Guarantee available– Easy integration in luminaire thanks to same dimensions like DALI GI ECG _ Touch DIM function for easy and inexpensive dimming of several ECGs– Same luminous flux with direct and alternating current– Dimming of amalgam lamps without flickering or reduced lifespan– Automatic restart after lamp replacement DALI product features – Control via the DALI interface– Compliance with the DALI Version-1 and IEC 60929– Control input protected against overvoltage and polarity reversal (OSRAM ECG) Touch DIM and Touch DIM Sensor function– Manual dimming without controller and with standard switches -Including memory function (double click) and soft start Product Data Sheet OSQNDA121.pdf

Read more less

This Osram QT-ECO 1x18-24/220-240 L is a non dimmable matchbox ballast to run: 1 x 24w T5 fluorescent tube 1 x 22w T5 Circular tube 1 x 15w or 18w T8 Fluorescent tube 1 x18w or 24w Double turn CFL's 1 x 18w or 24w Dulux F CFL's This product is now obsolete please click on the link below for viable alternative  to 18W  and 24W   https://www.easy-controlgear.com/products/tridonic-pc-1x18-24w-basic-linear?_pos=6&_sid=199dc1f00&_ss=r If it is a 21W tube please order the  https://www.easy-controlgear.com/products/philips-hfmblue121lh-ph-1x21w-tl5-hf-linear-m-bx-blue-ballst?_pos=1&_sid=88515baf7&_ss=r If you want the same but square  https://www.easy-controlgear.com/products/qt-eco-1x18-24-220-240-s?_pos=1&_sid=167c82a4e&_ss=r

Read more less

Now obsolete alternative same size alternative will be sent   ALTERNATIVE 1x55w PLL Quicktronic Ballast - Osram - QTP-FC155 103mm * 67mm  Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors Separate installations thanks to optional cable clamp for K2 and K3 casings VDE/VDE EMC certified system Areas of application Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 Open-plan offices, corridors and storage rooms Public buildings Suitable for luminaires of protection class I Data sheet

Read more less

  Standard electronic ballast Input voltage: 220 V – 240 V Lamp type: T5 (14 W / 21 W / 28 W / 35 W), T5-eco (14 W / 21 W / 28 W / 35 W) Lifetime up to (h): 60000 Warm start 280mm

Read more less

General Information Remarks UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG Application code EII Type version mk2 Lamp type TL-D Number of lamps 2 piece/unit Number of products on MCB (16 A type B) (nom.) 12 Automatic restart Yes Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Operating frequency (max.) 89 kHz Operating frequency (min.) 45 kHz Ignition method Programmed Start Crest factor (max.) 1.7 Power factor 100% load (nom.) 0.98 Ignition time (max.) 0.2 s Mains voltage performance (AC) -8%-+6% Mains voltage safety (AC) -10%-+10% Earth leakage current (max.) 0.5 mA Inrush current width 0.40 ms Power losses (nom.) 7.3 W Inrush current peak (max.) 45 A Efficiency at full load [%] 88.69 %

Read more less

Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 Industry Open-plan offices, corridors and storage rooms Public buildings Sports halls and factories Strip lighting Suitable for emergency lighting (DC operation) Modernization of existing systems Suitable for luminaires of protection classes I and II Data sheet Technical Data Electrical data Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 176…276 V Maximum output power 2 x 58 W Efficiency in full-load 95 % Operating frequency 40…50 kHz Max. ECG no. on circuit breaker 10 A (B) 8 Max. ECG no. on circuit breaker 16 A (B) 13 Inrush current 57 A Light technical data Starting time 1.5 s Dimensions & weight Length 360.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 350.0 mm Product weight 239.90 g Temperatures & operating conditions Ambient temperature range -20…+50 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 100000 h Additional product data Suitable for lamp power (2 lamps) 54…58 W Capabilities End of lamp life safety shutdown EOL T.2 Suitable for emergency lighting Yes Suitable for fixtures with prot. class I / II Max. cable length to lamp/LED module 2.0 m / 1.0 m Dimmable No Intended for no-load operation No Certificates & standards Approval marks – approval EL / VDE / ENEC 10 / VDE-EMC EEI – Energy Label A2 BAT Standards Acc. to IEC 61347-2-3 / App. J/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/Acc. to EN 61547 Protection class I Type of protection IP20 Logistical data Commodity code 850410809000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 09-05-2023 Primary Article Identifier 4008321880253 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database 468ab4ad-3f05-4ad7-82c1-f1d295e95904 Packaging information EAN Unit Piece Dimension l x w x h Weight 4008321880253 UNV  1 253.00g 4008321880260 VS  20 385mm x 160mm x 100mm 5016.00g Downloads Data sheets Family data sheet Data sheet QUICKTRONIC QTP OPTIMAL User instruction Size: 2.3 MB 502689_Frequent switching Quicktronic Addon Technical Information Size: 60.4 kB 502688_ECG lifetime - QUICKTRONIC non DIM Product Datasheet Size: 232.6 kB 592319_EAC certificate for Quicktronics QT Certificates Size: 2.2 MB 349650_QTP-OPTIMAL VDE Certificate Certificates Size: 657.4 kB 346505_ENEC QTP-Optimal Certificates Size: 678.1 kB 346506_EMC QTP-Optimal Certificates Size: 634.1 kB 346512_CE QTP-Optimal Certificates Size: 285.9 kB QUICKTRONIC CE 3364256 190821 Declarations of conformity Size: 1.6 MB QUICKTRONIC UK DoC 4314635 200821 Mandatory Publications Size: 116.3 kB

Read more less

BALLAST TECHNICAL DATA Type OGLI 1000W ST 120 380-415/50 100/50% Ballast for HI lamps OGLI 1000W ST 120 380-415/50 100/50% Ord. No. 20881172 - 11034    Capacitor required : CA15MFD-480-mt Stanadards Directeives Declarations Approvals   EN 60923, EN 61347 RoHS - 2011/65/EU CE - Lamp Type HI 1000W 4,4A Network (line voltage) V / Hz 380; 400; 415 / 50 Current A 4,4 Losses - warm W 41,8 cosfin - 0,57 h % - tw/D tn Thermal protection K 130/ 70 No   L   mm   174 D1 mm 160 Weight Kg 7,75   Packing   Pcs./Carton   3 Packing Pcs./Pallet 108 Impregnation   Vacuum impregnated with polyester resin         Elkosun d.o.o. Tržaška cesta 23 SI -2000 Maribor www.elkosun.com TD 11034 Date: 6. 06. 2016   Page 1
