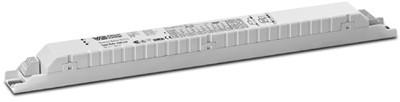

EL2x36sc Controllable (1-10 V) electronic ballast Input voltage: 220 V – 240 V Lamp type: T8 (36 W), TC-L (36 W), TC-F (36 W) Lifetime up to (h): 50000 Dimming range: 1 % – 100 % Warm start Energy efficiency class: A1 Length (mm): 430 Width (mm): 30 Height (mm): 21 Fixing length (mm): 420

Read more less

2 x28/54w Intelligent Dali Dimming Ballast - QNDA228 - QTi Dali 2X 28/54w DIM QTi DALI 2X28/54 DIM Product benefits System+ Guarantee available Easy integration in luminaire thanks to same dimensions like DALI GI ECG TouchDIM function for easy and inexpensive dimming of several ECGs Same luminous flux with direct and alternating current Dimming of amalgam lamps without flickering or reduced lifespan Automatic restart after lamp replacement DALI product features Control via the DALI interface Compliance with the DALI Version-1 and IEC 60929 Control input protected against overvoltage and polarity reversal (OSRAM ECG) Touch DIM and Touch DIM Sensor function Manual dimming without controller and with standard switches Including memory function (double click) and soft start View all details Product data sheet

Read more less

4/6/8w T5 ballast 18x41mm

Read more less

The Tridonic PCA 3x14/24 T5 ECO is a low profile, dimmable high frequency ballast to run: 3 x 14 or 24 Watt T5 fluorescent tube.

Read more less

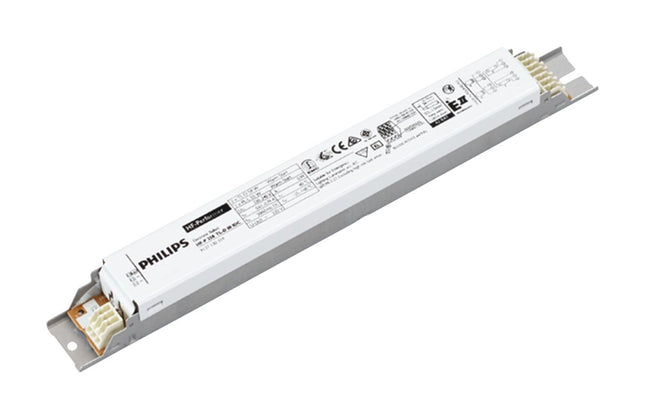

Philips TL5 14-39w Single High Frequency Dali Dimmable Ballast from Philips Model: 913700698366 A Philips TL5 14-39w Single High Frequency Dali Dimmable Ballast Technical Specifications Control Gear Type High Frequency Accessory Type Ballast Wattage 39 W Manufacturer Philips Dimming? Dimmable No. Of Lamps Single (1x) Fixing Centers 350mm Height 28 mm Length 360 mm Type Control Gear Terminals 4 Width 30 mm Control Gear Technology Fluorescent

Read more less

Excel Version will be sent  Tridonic Electronic HF Ballast to run 2X 58w Dali Dimmable T8 tubes - PCA 2/58 ECO

Read more less

Data sheet Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Open-plan offices, corridors and storage rooms Public buildings Strip lighting Suitable for luminaires of protection class I Modernization of existing systems Technical Data Electrical data Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 198…264 V Maximum output power 2 x 35 W Efficiency in full-load 91 % Operating frequency 40…50 kHz Light technical data Starting time 2.0 s Dimensions & weight Length 280.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 270.0 mm Product weight 181.00 g Cable cross-section, output side 0.5…1.5 mm² Cable cross-section, input side 0.5…1.5 mm² Temperatures & operating conditions Ambient temperature range -15…+50 °C Permitted rel. humidity during operation 5…85 % Additional product data Suitable for lamp power (2 lamps) 14…35 W Capabilities End of lamp life safety shutdown EOL T.2 Suitable for emergency lighting No Suitable for fixtures with prot. class I Max. cable length to lamp/LED module 2.0 m / 1.0 m Dimmable No Intended for no-load operation No Certificates & standards Approval marks – approval VDE / ENEC 10 / VDE-EMC EEI – Energy Label A2 BAT Standards Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/IEC 61000-3-2/Acc. to EN 61547/IEC 61547 Type of protection IP20 Protection class I Logistical data Commodity code 850410809000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 14-03-2023 Primary Article Identifier 4008321971258 Candidate List Substance 1 No declarable substances contained Declaration No. in SCIP database No declarable substances contained Packaging information EAN Unit Piece Dimension l x w x h Weight 4008321971258 UNV  1 280mm x 30mm x 21mm 181.00g 4008321971265 VS  20 303mm x 101mm x 159mm 3786.00g Downloads Data sheets Family data sheet Data sheet QUICKTRONIC QT FIT5 User instruction Size: 1.7 MB 502688_ECG lifetime - QUICKTRONIC non DIM Product Datasheet Size: 232.6 kB 342812_QT-FIT5 Product Datasheet Size: 279.9 kB 339586_VDE-Marks approval Certificates Size: 909.9 kB 339588_EMC-Marks approval Certificates Size: 977.1 kB 592319_EAC certificate for Quicktronics QT Certificates Size: 2.2 MB 683441_ENEC-Marks approvals Certificates Size: 642.2 kB QUICKTRONIC CE 3364256 190821 Declarations of conformity Size: 1.6 MB 339652_CAD QT-FIT5 3-DIM.x_t CAD data 3-dim Size: 294.1 kB 339657_CAD QT-FIT5 3-DIM.STEP CAD data 3-dim Size: 353.9 kB 339658_CAD QT-FIT5 3-DIM.IGS CAD data 3-dim Size: 511.9 kB 339600_CAD QT-FIT5 CAD data PDF Size: 173.7 kB QUICKTRONIC UK DoC 4314635 200821 Mandatory Publications Size: 116.3 kB

Read more less

Obsolete, If you are using the dali dimming feature please order the EL2X80IDIM , please note this is dali dimming only and not DSI dimming  Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less

Tridonic PC249T5PRO Electronic HF Ballast to run 2 x 49w T5 tubes - PC 2/49 T5 PRO low profile 22185154

Read more less

1x18-21ww DE/DT High Fequency Ballast - Osram - QTECO118-21

Read more less

Obsolete, please use the below as a viable alternative. This is what you will be sent .      Alternative  The Tridonic PC 1x18-24 W Basic (Linear) is a basic non-dimmable high frequency ballast to run: 1 x 24 Watt T5 Fluorescent tube OR 1 x 18 Watt T8 Fluorescent tube OR 1 x 22 Watt T5 circular fluorescent tube OR 1 x 18 Watt F shaped compact fluorescent 1 x 24 Watt F shaped compact fluorescent OR 1 x 18 Watt long single turn compact fluorescent 1 x 24 Watt long single turn compact fluorescent Tridonic 22176001!

Read more less

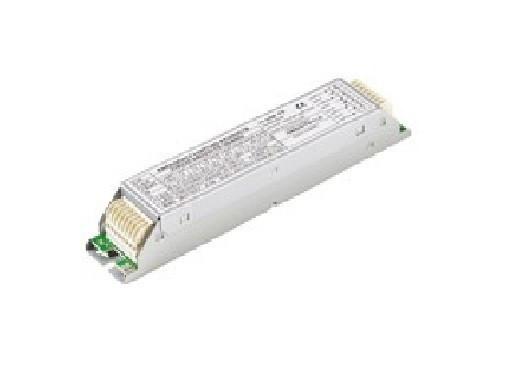

Tridonic PC12834DDCOMB Combined Electronic ballast to run 1 x 28 - 33w Compact DD lamps
