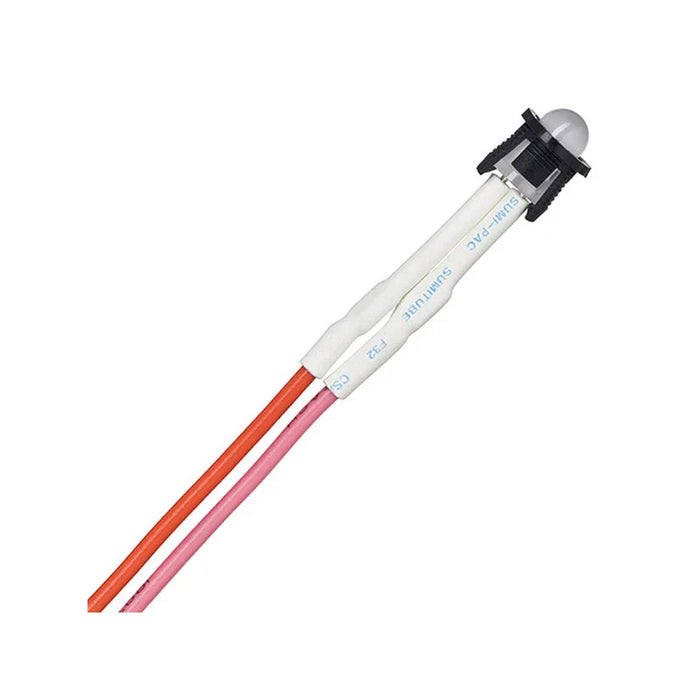

Product description Holder for indicator LED in emergency operation Glow-wire test with a temperature of 850 °C passed Same as CRL5  Article information Data sheet

Read more less

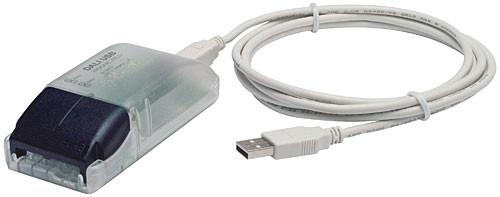

PC Interface Module for DALI Systems

Read more less

Tridonic Combined Electronic ballast to run 1 x 38 - 3 Hour 4 Cell  Compact HO DD lamps - PC 1 x 38-34 HO DD Co

Read more less

Obsolete, please use the below as a viable alternative. This is what you will be sent .      Alternative  The Tridonic PC 1x18-24 W Basic (Linear) is a basic non-dimmable high frequency ballast to run: 1 x 24 Watt T5 Fluorescent tube OR 1 x 18 Watt T8 Fluorescent tube OR 1 x 22 Watt T5 circular fluorescent tube OR 1 x 18 Watt F shaped compact fluorescent 1 x 24 Watt F shaped compact fluorescent OR 1 x 18 Watt long single turn compact fluorescent 1 x 24 Watt long single turn compact fluorescent Tridonic 22176001!

Read more less

Product description Ideal for linear and panel lights 2 terminals for serial wiring Perfectly uniform light, even if several LED modules are used together in a line Push terminals for quick and simple wiring of LED module to LED module Option backside terminal Broad portfolio from extruded lenses and covers available Long lifetime up to 72,000 hours

Read more less

Tridonic PC12834DDCOMB Combined Electronic ballast to run 1 x 28 - 33w Compact DD lamps

Read more less

EM converterLED PRO MH/LiFePO4 250 V PRO version Note: LED driver supplied with duration link in 3 hours position. Duration link must be set before battery and mains connection. Product description Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 50 – 250 V Low profile casing (21 x 30 mm cross-section) For luminaire installation Nominal lifetime up to 100,000 h 5 years guarantee Properties Non maintained operation DALI interface for controlled testing and monitoring 1, 2 or 3 h rated duration Operating time selectable with plug (duration link) Compatible with most constant current LED drivers (see data sheet, LED driver compatibility) 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver Automatic shutdown of output if LED load is out of range Constant power output Two-colour status display LED Electronic charge system Deep discharge protection Short-circuit-proof battery connection Polarity reversal protection for battery provided by 3-pole connector Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries) Self-test: Status of the battery Status of the LED Function test Duration test Batteries High-temperature cells NiMH or LiFePO4 batteries LA or 18650 cells 4-year design life for NiMH batteries 1 years guarantee for NiMH batteries 4 – 8 years design life for LiFePO4 batteries 4 years guarantee for LiFePO4 batteries For battery compatibility refer to datasheet, battery selection

Read more less

Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Output current adjustable between 100 – 400 mA Dimming range 1 to 100 % For luminaires of protection class I and protection class II Max. output power 75 W Up to 92 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications replacement for the 28000134

Read more less

obsolete , as long as you are using the dali feature please order the below  DALI Alternative The Tridonic PCA 2x26/32/42 TC ECO is a high frequency dimmable ballast to run:  2 x 26w Double Turn Compact Fluorescent Lamps 2 x 26w Triple Turn Compact Fluorescent Lamps 2  x 32w Triple Turn Compact Fluorescent Lamps 2 x 42w Triple Compact Fluorescent Lamps   Tridonic part number: 22185121

Read more less

Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 500 – 1,400 mA Max. output power 45 W Up to 91 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee (conditions at www.tridonic.com)

Read more less

river LC 57W 800-1050mA flexC lp ADV advanced series SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 800 – 1,050 mA Max. output power 57 W Up to 86 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Suitable for emergency escape lighting systems acc. to IEC 50172 Typical applications For linear/area lighting in office applications

Read more less

This item is Obsolete the nearest alternative is the below   Alternative   Tridonic 89800393 EM PowLED HP Basic FX 80W LED Driver Tridonic 89800393 EM powLED HP BASIC FX 104 LP 80W 200V Linear LED Driver - High power emergency unit for linear LED lighting systems.Fixed-output LED Driver for mains operation with integrated Simple CORRIDOR FUNCTION.Emergency lighting function for use with single batteries for manual testing.Please see attached spec sheet for more information. Colours: As Per Picture Volts: 200-250 v Watts: 80 w Length: 360 mm Bulb/Lamp Type: LED Driver Size: 360 x 30 x 21 Height: 21 mm Width: 30 mm Weight: 275g

Read more less
