PLEASE NOTE THIS PRODUCT IS NOW OBSOLETE , PLEASE CONSIDER THE BELOW AS A VIABLE ALTERNATIVE DATASHEET IN DOWNLOADS  ALTERNATIVE Ansell/All Led / Ohmtronic  Ansell constant voltage, non dimmable 75w LED Driver for 12v LED applications Offers thermal, short circuit and overload protection

Read more less

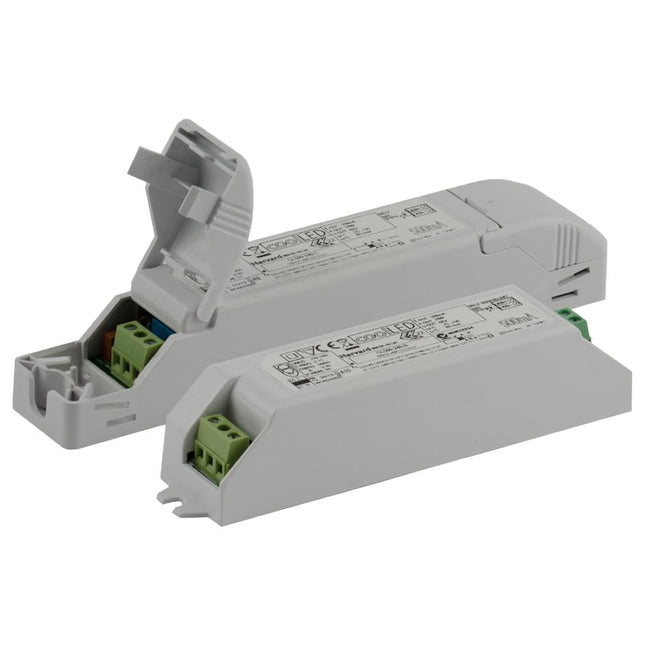

This item is obsolete, you will be sent  Alternative TCI 151376 Harvard CoolLED 33w 700ma 15-48v Open Terminals - Harvard - CL700D2-240-B C-DC 33W LED driver Constant Current mode (CC); Max. output 48Vdc at 0.7A; IP20; Dimming with DALI; Built-In control Specifications Technical data Information Brand Harvard Power Systems Commodity 8504409090 Item number CL700D2-240-B Warranty pack 60 Months Bring-In Series CL RoHS Compliant Description AC-DC 33W LED driver Constant Current mode (CC); Max. output 48Vdc at 0.7A; IP20; Dimming with DALI; Built-In control Packing Quantity 50 Application LED EN 61347 Net weight (gram) 130 Technology AC/DC Constant Current C.C. Format Box Type - Enclosed Output Power (W) 33 Output Voltage (V) 48 Output Current (A) 0.7 Input Voltage (V) 220 - 240 IP Rating IP20 Width (mm) 32 Height (mm) 32 Depth (mm) 150 Dimming Technology DALI

Read more less

Driver LCO 165W 200–1050mA 285V one4all NFC C EXC3 excite NFC outdoor series Product description Dimmable built-in constant current LED driver Dimming range 5 – 100 % (min. 10 mA) For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer Max. output power 165 W Up to 93 % efficiency Lowest power input on stand-by < 0.16 W Nominal lifetime of 100,000 h and 8 years guarantee Interfaces Near field communication (NFC) one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration via mains) U6Me2 (configuration of chronoSTEP 2 via mains) Terminal blocks: 45° / 0° push terminals Functions Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains) Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains) Dimming through mains voltage (inputDIM) Enhanced constant light output function (eCLO) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Configurable external temperature management (ETM) Intelligent Temperature Guard (ITG) Intelligent Voltage Guard Plus (IVG+) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency In-field programming possible after installation with NFC interface and ready2mains High overvoltage protection: up to 10 kV asymmetric (protection class I and II) Typical applications Road, street and industry

Read more less

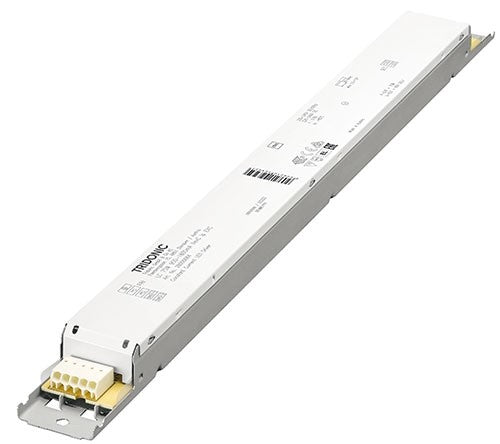

Product Datasheet   Product family features _ Line frequency: 0 Hz | 50 Hz | 60 Hz _ Versatile DALI window driver up to 75 W due to flexible output characteristic _ Supply voltage: 220…240 V _ Usable as DT6 (2-channel) or DT8 (Tunable White) driver* _ Available with output current range: up to 700 mA _ Constant Lumen Output (CLO) _ Integrated customizable thermal management (Driver Guard) _ Non-isolated drivers

Read more less

LC1x30-E-DA   30 W DALI dimmable LED driver 350 mA / 500 mA / 700 mA multiple currents output Lifetime up to (h): 100000 Dimming range: 1% – 100% Product number: 5 502 004 More information: DALI, PanelReady Datasheet

Read more less

OBSOLETE, THE BELOW WILL BE SENT Or  Alternative alternative    Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 200mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 200mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

Read more less

ELED-40P-C300/1400T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch• Dimming function: Triac/phase cut dimming• Work with leading or trailing edge Triac dimmer• (ON key: leading edge; 1 key: trailing edge)• AC input: 200-240VAC• Built-in active PFC function• Efficiency up to 80%• IP20 design for indoor installation• Full protection plastic housing easy installation• Protections: Short circuit/ Over load• Cooling by free air convection• Suitable for LED lighting and moving sign applications• Strong compatibility, flicker-free dimming https://www.ecopacpower.co.uk/assets/pdf/ELED-40P-C300-1400T.pdf

Read more less

EM powerLED PRO EZ-3, 1 – 2 W Combined emergency lighting LED Driver 1 – 4 W Screw-fix Clip-fix Screw-fix Clip-fix Product description Emergency lighting LED Driver with DALI interface and automatic test function For self-contained emergency lighting SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) 5 years guarantee Properties Mains and emergency operation DALI interface for controlled testing and monitoring DALI switchable in mains operation (on/off); the switched phase SL must be switched on Constant current mode With either screw or clip fastening (clip-fix) 1, 2 or 3 h rated duration Selectable operating time (jumper) Output power limitation Two-colour status display LED Automatic restart after LED replacement Electronic multi-level charge system SELV classified (outputs powerLED, battery, status LED, test switch) Polarity reversal protection for battery Deep discharge protection Very low energy consumption from the battery after activation of the deep discharge protection Short-circuit-proof battery connection Addressing function, patented (“EZ easy addressing”) Emergency lighting LEDs available Tests: Status of the battery Status of the LED Charge condition Function test Duration test Batteries High-temperature cells 2 Ah NiMH batteries Cs cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

Output voltage and C.C level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 95% Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Built-in active PFC function, PF>0.9 for 60% of load or higher5 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 264 Output Voltage 12V Dimmable (Type) AC phase-cut DC Output Adjustment +/-6% rated output voltage Dimensions 252 x 90 x 43.8 EMC Standards EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-320H-spec_17.pdf

Read more less

Nominal input voltage 220…240 V Mains frequency 0/50/60 Hz Input voltage AC 198…264 V Input voltage DC 176…276 V Total harmonic distortion < 20 % Power factor λ > 0.95 ECG efficiency 88 % Device power loss 4.5 W Power loss in stand-by mode <0.1 W Inrush current < 20 A Max. ECG no. on circuit breaker 10 A (B) 50 Max. ECG no. on circuit breaker 16 A (B) 80 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 12…54 V U-OUT (working voltage) 60 V Nominal output current 180…700 mA Output current LEDset open 90 mA Output current LEDset shorted 500 mA Default output current 500 mA Output current tolerance ±3 % Output ripple current (100 Hz) < 1 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 27 W Galvanic isolation SELV Dimensions & weight Mounting hole spacing, length 94.0 mm Mounting hole spacing, width 58.0 mm Product weight 149.00 g Cable cross-section, input side 0.2…1.5 mm² Cable cross-section, output side 0.2…1.5 mm² Wire preparation length, input side 8.0…9.0 mm Wire preparation length, output side 8.0…9.0 mm Height 29.5 mm Length 103.0 mm Width 67.0 mm Colors & materials Casing material Plastic Temperatures & operating conditions Ambient temperature range -20…+50 °C Maximum temperature at tc test point 75 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Capabilities Dimmable Yes Dimming interface DALI / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimming method Amplitude Modulation Constant lumen function Programmable Overheating protection Automatic reversible Overload protection Automatic reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I / II Type of connection, output side Push terminal Number of channels 1 Programming interface DALI, LEDset DALI-2 Diagnostic Data Yes DALI-2 Energy Data Yes Programming Tuner4TRONIC Field App No Programming device DALI / LEDset Programmable features Lamp Operating Time Yes Driver Guard No DALI Settings Yes Emergency Mode Yes DALI-2 Luminaire Data Yes Configuration Lock No Soft Switch Off Yes Dim to Dark No TouchDIM + Sensor Yes Corridor Functionality Yes OEM Key Yes Certificates & standards Approval marks – approval ENEC 10 / VDE / EMC / EL / CE / DALI-2 Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1 Protection class II Type of protection

Read more less

EM powerLED PRO DIM SR 45 W Combined emergency lighting LED driver Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection. Product description Independent dimmable LED driver Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 20 – 50 V SELV for output voltage < 60 V DC Compact plastic casing with strain relief Properties Output power 6 – 45 W Constant current LED operation 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA Integrated emergency lighting unit 1, 2 or 3 h rated duration Operating time selectable with dip switch (2-way) Automatic shutdown of output if the forward voltage of the LED is out of range Two-colour status display LED Electronic multi-level charge system Pulse current charging for NiMH batteries Polarity reversal protection for battery Power-up fading at AC Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Deep discharge protection Short-circuit-proof battery connection 5 years guarantee Interfaces one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION) Terminal blocks: 45° push terminals Batteries High-temperature cells NiCd or NiMH batteries D, Cs, LA or LAL cells Battery box for independent use 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

Product family benefits Large range of products from 20 W to 250 W Installation in very cold and hot environments Very stable output power High electronical reversible short-circuit, overload, overtemperature protection Smart Power Supply: boosting power to turn on cold LEDs Independent installation possible Dimming range: 1…100 % Areas of application Facades, public squares, cruise ships Signage Suitable for indoor and outdoor installations Data sheet 4052899545908
