Constant Voltage Design 12V or 24V Output Dimmable using leading edge & trailing edge Triac Dimmers PWM Output 3 Years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage Choose Option Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 230x70x46mm EMC Standards EMI according to EN55015, EMS according to EN61000-3-2; EN61000-3-3 Input Voltage 180-264VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100P-T.pdf

Read more less

obsolete replaced by the  Alternative  Dali dimmable Constant current design Protections: Short circuit/ Overload/ Over voltage   Other Features: Built-in PFC function (PFC>0.95) Cooling by free air convection Up to 80% efficiency Fully isolated, delivering up to 15W of power Dali control standard IEC62386 Dali control input <2mA, 5-100% logarithmic dimming rangeMore Information Manufacturer Ecopac Power Output Wattage (W) 15 Dimmable (Type) DALI Dimensions 95x 37x 18mm EMC Standards EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11, EN61000-3-2, EN61000-3-3 Input Voltage 100-240VAC Safety Standards EN60598 Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet ELED-15-Dali_Series.pdf

Read more less

The Ecopac Power ECP100-24VF-1 slimline constant voltage LED driver is ideal for concealment where space is restricted, such as hiding behind a strip. Short circuit, over temperature and over loading protection are all standard features.  Ecopac Power LED Drivers are supplied with a 3 year warranty.  Other features: Slim line LED Driver Universal AC input/ Full range 180-264VAC Input Frequency 50/60Hz 24V Constant voltage output 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 12V Dimmable (Type) No DC Output Adjustment N/a Dimensions 320.6x 26.8x 18.2 (LxWxH) mm EMC Standards EN55015, EN61000-3-2; EN61000-3-3; EN61547 Input Voltage 180-264VAC Safety Standards EN61347-1,EN61347-2-13 Working Temperature -20~+45°C PDF Datasheet ECP-100-VF-1.pdf

Read more less

Input Voltage: 180-264VAC Built-in active PFC function (>0.9) Input Frequency: 50-60Hz Output Power: 200W Protections: Short circuit/ Overload/ Over Temp Compact and light-weight plastic case 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 200 Output Voltage 24V Dimmable (Type) No Dimensions 195x 67x 31.5 EMC Standards EN55015, EN61000-3-2; EN61000-3-3; EN61547 Input Voltage 180-264VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -20~+45°C PDF Datasheet ECP200-VL Series.pdf

Read more less

Constant voltage design Built-in active PFC function Protections: Short circuit/ Overload/ Overheat Input Voltage: 200 – 240VAC Cooling by free air convection Output Power: 50W Compact and light-weight plastic case Working Temperature: -20C to +45C 3 year warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 30 Output Voltage 24V Dimmable (Type) No Dimensions 158x 51x 17 EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61547 Input Voltage 200~240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet ECP30_Series.pdf

Read more less

Constant Voltage Design0-10V DimmableProtections: Short circuit/ Over Voltage/ OverloadOther features:Universal AC input/ Full rangeIP66 design for indoor or outdoor installationsBuilt-in PFC functionCooling by free air convectionOver 83% efficiency3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 24V Dimmable (Type) 0-10V Dimensions 230x 68.5x 44 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 EN61547 A light industry level Input Voltage 100-265VAC Safety Standards EN61347-2-13, IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100 0~10V Series.pdf

Read more less

obsolete ,  please  order the below . Which is the 100W variant     https://www.easy-controlgear.com/products/eled-100-12t-ecopac-constant-voltage-led-driver-eled-100-12t-100w-12v?_pos=1&_sid=6421e0f7f&_ss=r   Constant voltage Triac/ Mains dimming Suitable for leading/ trailing edge Protections: Short circuit/ Over voltage   Other features: Built-in active PFC funtion (PF>0.95) Cooling by free air convection IP66 Rated Design Fully isolated, delivering up to 80W of powerMore Information Manufacturer Ecopac Power Output Wattage (W) 80 Output Voltage 12V Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 200x 68x 45 EMC Standards Compliance to EN55015, EN61000-3-2 (?50% load), EN55015, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, light industry level Input Voltage 175~265VAC Safety Standards EN-60950-1 Output Voltage Options Single Working Temperature -40°C ~ +60°C PDF Datasheet ELED-80-T.pdf

Read more less

Ecopac ELED-30-24DP2 DALI Dimmable, constant voltage LED driver. Built in short circuit, overload, over current and over temperature protection together with a 3 year warranty make the ELED-30-24DP2 highly reliable.  • Constant voltage/ PWM Output (NFC regulation)• DALI & Push dimming function (0-100%)• AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 83%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• IP20 design for indoor installation.• Suitable for intelligent LED lighting More Information Brand Ecopac Power Output Wattage (W) 30 Output Voltage 24V IP Rating IP20 Non Waterproof Dimmable (Type) DALI, Push Dimming Dimensions 171.5 x 54 x 20 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load) Input Voltage 100~277VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 , UL8750 (US) Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-30-DP2_2022-04-14-094641.pdf

Read more less

Constant Voltage Design 12V or 24V Output Dimmable using leading edge & trailing edge Triac Dimmers PWM Output 3 Years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 60 Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 178x 61x 24 EMC Standards Compliance to EN55015, EN61000-3-2,3 (>60% load) Input Voltage 200-240VAC Safety Standards EN61347-1, EN61347-2-13 Working Temperature -40~+70°C PDF Datasheet ELED-60P-T.pdf

Read more less

The Ecopac Power ELED-50-24D DALI Dimmable LED driver is high quality with a dimming range from 0.1% up to 100%. Short circuit and over loading protection are standard features. This model is a constant current design with a 24 volt output. Ecopac Power LED Drivers are supplied with a 3 year warranty.  Other features: DALI Dimmable Dimming range: 0.1-100% Universal AC input/ Full range 100-265VAC Built-in active PFC function 24V Constant voltage output IP20 Rated 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 50 Output Voltage 24V Dimmable (Type) DALI DC Output Adjustment N/a EMC Standards EN55015, EN61000-3-2, EN61000-4-2,3,4,5,6,11 Input Voltage 100-265VAC Safety Standards EN61347-1,EN61347-2-13 Working Temperature -40~+60°C PDF Datasheet ELED-50-D Series-1.pdf

Read more less

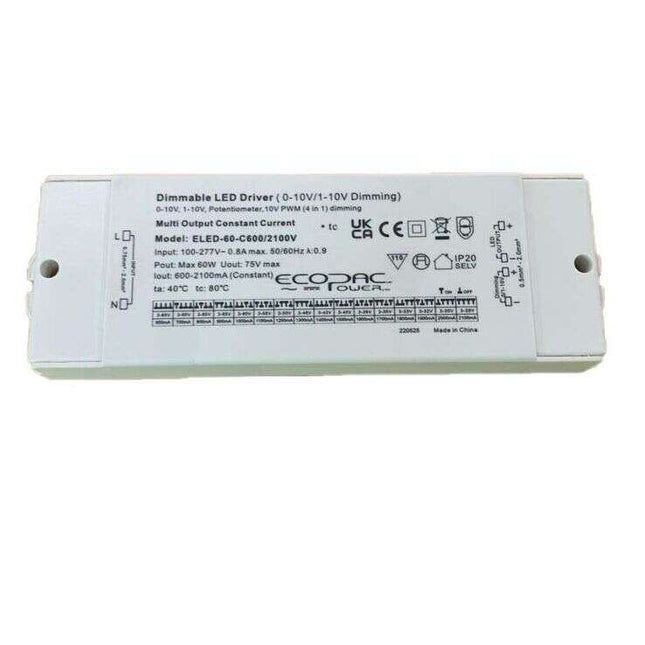

ELED-60-C600/2100V(2100mA) ELED-60-C600/2100V(2000mA) ELED-60-C600/2100V(1900mA) ELED-60-C600/2100V(1800mA) ELED-60-C600/2100V(1700mA) ELED-60-C600/2100V(1600mA) ELED-60-C600/2100V(1500mA) ELED-60-C600/2100V(1400mA) ELED-60-C600/2100V(1300mA) ELED-60-C600/2100V(1200mA) ELED-60-C600/2100V(1100mA) ELED-60-C600/2100V(1000mA) ELED-60-C600/2100V(900mA) ELED-60-C600/2100V(800mA) ELED-60-C600/2100V(700mA) ELED-60-C600/2100V(600mA) Wattage 60 60 60 60 60 60 60 60 60 60 60 60 58.5 52 45.5 39 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC Output Current 2100mA 2000mA 1900mA 1800mA 1700mA 1600mA 1500 1400mA 1300mA 1200mA 1100mA 1100mA 900mA 800mA 700mA 600mA Output Voltage Options 3~29 3~30 3~32 3~33 3~35 3~38 3~40 3~43 3~46 3~55 3~60 3~65 3~65 3~65 3~65 Dimensions 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm 320 x 280 x 215 mm Working Temperature -40~+80°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

Constant Voltage DesignDali DimmableProtections: Short circuit/ Over Voltage/ Over TemperatureOther features:Dimming range from 0.1% to 100%Range 100-265VACBuilt-in PFC functionIP66 design for indoor or outdoor installations87% efficiency3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 24V Dimmable (Type) DALI Dimensions 230x 70x 44 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 (Surge 4KV) Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100-Dali Series.pdf

Read more less
