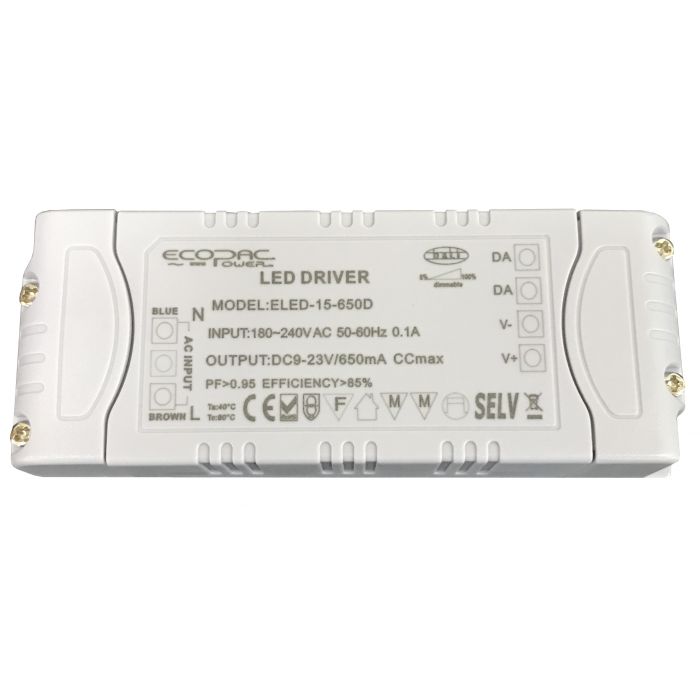

ELED-15D-S - Ecopac ELED-15D Series Constant Current LED Driver 350-650mA

Description

obsolete replaced by the  Alternative

Dali dimmable Constant current design Protections: Short circuit/ Overload/ Over voltage   Other Features: Built-in PFC function (PFC>0.95) Cooling by free air convection Up to 80% efficiency Fully isolated, delivering up to 15W of power Dali control standard IEC62386 Dali control input <2mA, 5-100% logarithmic dimming range
More Information Manufacturer Ecopac Power Output Wattage (W) 15 Dimmable (Type) DALI Dimensions 95x 37x 18mm EMC Standards EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11, EN61000-3-2, EN61000-3-3 Input Voltage 100-240VAC Safety Standards EN60598 Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet ELED-15-Dali_Series.pdf

ELED-15D-S - Ecopac ELED-15D Series Constant Current LED Driver 350-650mA

Product form

SKU: ELED-15D-S

Trade price available - contact us

£36.89 Excl. VAT

(inc. 20% VAT): £44.27

    • Contact us to confirm availability

    Description

    obsolete replaced by the  Alternative

    Dali dimmable Constant current design Protections: Short circuit/ Overload/ Over voltage   Other Features: Built-in PFC function (PFC>0.95) Cooling by free air convection Up to 80% efficiency Fully isolated, delivering up to 15W of power Dali control standard IEC62386 Dali control input <2mA, 5-100% logarithmic dimming range
    More Information Manufacturer Ecopac Power Output Wattage (W) 15 Dimmable (Type) DALI Dimensions 95x 37x 18mm EMC Standards EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11, EN61000-3-2, EN61000-3-3 Input Voltage 100-240VAC Safety Standards EN60598 Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet ELED-15-Dali_Series.pdf
