Controllable (1-10 V) electronic ballast Input voltage: 220 V – 240 V Lamp type: T5 (24 W), T5-eco (24 W), TC-L (24 W), TC-F (24 W) Lifetime up to (h): 50000 Dimming range: 1 % – 100 % Warm start Energy efficiency class: A1 Length (mm): 430 Width (mm): 30 Height (mm): 21 Fixing length (mm): 420

Read more less

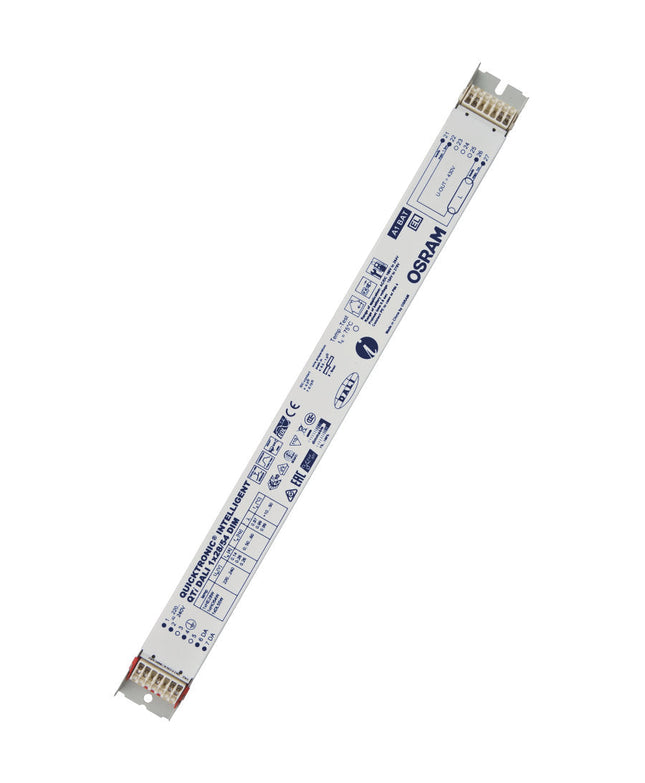

obsolete, if ordered  the Philips variant will be sent out   Osram QT 1X58/220-240 DIM (1-10V) 1 X 58W T8 Dimming ballast for T8 fluorescent tubes. Dimming range: 1-100 % luminous flux. 360 x 30 x 21mm dimensions.

Read more less

2x14w-3 Cell T5 Combo Ballast - Tridonic - 89899876

Read more less

250w SON/Metal Halide Ballast - HSA25223221

Read more less

OBSOLETE, PLEASE CONSIDER THE BELOW ALTERNATIVE IF USING 240V ALTERNATIVE ARLEN FL 2x54-58M 110-240V Ballast SI254-58  from Arlen (Model: HFL2x54-58M) ARLEN FL2x54-58M Ballast Technical Specifications for ARLEN FL 2x54-58M 110-240V Ballast Height 26 mm Length 360 mm Manufacturer Arlen Type Control Gear Voltage 110-240 Volt Width 30 mm

Read more less

PLEASE READ BELOW  Tridonic PC118BASIC Electronic compact ballast 1x18w TCD lamp & 1x18w TCT Lamp - Tridonic - 2413882 OBSOLETE , please click below for alternative  ALTERNATIVE

Read more less

OBSOLETE , IF using DALI dimming the below will suffice   DALI Alternative   If using DSI no alternative available    Tridonic Electronic compact dimming ballast to run 1 x 26-57w TC Compact The Tridonic PCA 1x26-57 TC ECO xitec II is a high frequency dimmable ballast for use with DALI/DSI/switchDIM interfaces. Compatible with the following lamps: 1 x 40w T5 Circular Lamp 1 x 26w Double Turn Compact Fluorescent Lamp 1  x 26w Triple Turn Compact Fluorescent Lamp 1 x 40w Long Single Turn Compact Fluorescent Lamp 1 x 40w T5 Circular Fluorescent Lamp 1 x 32w Triple Compact Fluorescent Lamp 1 x 42w Triple Turn Compact Fluorescent Lamp 1 x 57w Triple Turn Compact Fluorescent Lamp Tridonic part number: 22185120

Read more less

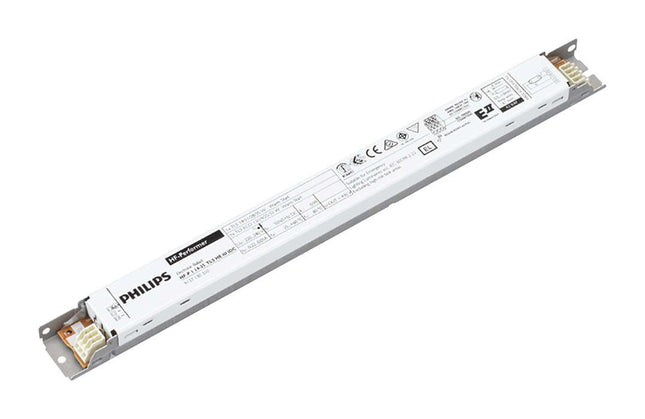

Product Features Flat, lightweight high-frequency electronic regulating ballast, using 1-10V protocol for TL5 fluorescent lamps  Features Programmed start: flicker-free ignition < 0.5 seconds and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables the lamps to be switched on and off without reducing life Smart power ensures constant light, independent of mains fluctuations Up to 60% reduction in energy consumption by using automatic lighting control systems Stop circuit is activated within 5 seconds in the event of lamp failure (safety stop), and ballast resets automatically after lamp replacement Application 1-10V installations with daylight linking and/or movement detection (for energy savings) 1-10V installations with remote control systems (combining energy savings with comfort) Installations with emergency back-up, according to IEC 60598-2-22

Read more less

Osram QTP511435 - 1 x 14-35w T5 HF Ballast - 4008321329035 Product family benefits _ Long lamp life _ No adverse effect from frequent on/off switching _ Perfect lamp start for applications with motion sensors _ Automatic restart after lamp replacement _ VDE/VDE EMC certified system _ Very high energy efficiency due to cut-off technology Areas of application _ Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 _ Industry _ Open-plan offices, corridors and storage rooms _ Public buildings _ Sports halls and factories _ Strip lighting _ Suitable for emergency lighting (DC operation) _ Modernization of existing systems _ Suitable for luminaires of protection classes I and II Product datasheet QTP5 1X14…35 QUICKTRONIC PROFESSIONAL 5 | ECG for FL 16 mm Product family features _ Supply voltage: 220…240 V _ Line voltage: 198…264 V _ Line frequency: 0 Hz | 50 Hz | 60 Hz _ Lamp start with optimum filament preheating _ Lifetime: up to 100,000 h (temperature at T c = 65 °C, max. 10 % failure rate) _ Energy Efficiency Index EEI: A2 BAT _ Automatic shutdown of defective lamps and at end of life (EoL T.2) _ Safety: to EN 61347-2-3 _ Lamp operation: to EN 60929 __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 1 of 6 Technical data Electrical data Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 176…276 V Operating frequency 40…50 kHz Max. ECG no. on circuit breaker 10 A (B) 17 1) Max. ECG no. on circuit breaker 16 A (B) 28 1) Inrush current 24 A 1) Type B Light technical data Starting time 1.0 s 1) 1) If there is a temporary interruption in the power supply (< 0.5 s), the lamp will start within 0.3 s Dimensions & weight Length 280.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 270.0 mm Product weight 171.00 g Temperatures & operating conditions Ambient temperature range -20…+50 °C Permitted rel. humidity during operation 5…85 % 1) 1) Maximum 56 days/year at 85 % Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 2 of 6 Lifespan ECG lifetime 100000 h 1) 1) At T case = 65°C at T c point / 10% failure rate Expected Lifetime Product name Lamp group QTP5 1X14…35 HE 35 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 50 60 65 Lifetime [h] 100000 100000 90000 Additional product data Suitable for lamp power (1 lamp) 14…35 W Capabilities Suitable for fixtures with prot. class I / II End of lamp life safety shutdown EOL T.2 Max. cable length to lamp/LED module 2.0 m / 1.0 m Dimmable No Certificates & standards Approval marks – approval VDE / VDE-EMC / CE / ENEC 10 EEI – Energy Label A2 BAT Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Protection class III Type of protection IP20 Logistical data Commodity code 850410809000 Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 3 of 6 Wiring Diagram 319638_QTP5 1x.. 592499_EAC QTP5 Download Data File Product Datasheet 321531_ATI QTP5 1x14-35 (G+GB) Product Datasheet 334048_QUICKTRONIC PROFESSIONAL – QTP5 Product Datasheet 502688_ECG lifetime - QUICKTRONIC non DIM Certificates 335002_EMC-Marks approval Certificates 335097_INOTEC Certificates 335098_CEAG Certificates 335101_ENEC-VDE-Marks approval Certificates 335128_VDE Quality Tested Simplified luminaire approbation Certificates 335169_Manufacturer´s declaration – LampECG combinations: Frequent switching Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 4 of 6 Certificates 592319_EAC certificate for Quicktronics QT Certificates 504210_VDE-EMC-Certificate QT5 Declarations of conformity Quicktronic CE 3364256 070121 CAD data 3-dim 322169_QTP5 1x14-35, QTP5 1x24-39, QTP5 1x49, QTP5 1X54 CAD data 3-dim 322170_QTP5 1x14-35, QTP5 1x24-39, QTP5 1x49, QTP5 1X54 CAD data PDF 322176_QTP5 1x14-35, QTP5 1x24-39, QTP5 1x49, QTP5 1X54 Logistical Data Product code Product description Packaging unit (Pieces/Unit) Dimensions (length x width x height) Volume Gross weight 4008321329035 QTP5 1X14…35 Shipping carton box 20 303 mm x 101 mm x 159 mm 4.87 dm³ 3586.00 g The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit. Disclaimer Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release. Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 5 of 6 QTP5 1X14…35 QUICKTRONIC PROFESSIONAL 5 | ECG for FL 16 mm Product name Lamp group Nominal current Nominal wattage + Power loss Luminous flux at 35 °C Number of lighting outlets QTP5 1X14…35 DULUX L 26 W HE 0.13 A 29.00 W 2470 lm 1 DULUX L 28 W HE 0.13 A 28.50 W 2550 lm 1 HE 13 W ES 0.075 A 15.00 W 1150 lm 1 HE 14 W 0.08 A 16.00 W 1200 lm 1 HE 19 W ES 0.10 A 22.00 W 1800 lm 1 HE 21 W 0.11 A 24.00 W 1900 lm 1 HE 25 W ES 0.12 A 27.00 W 2450 lm 1 HE 28 W 0.14 A 31.00 W 2600 lm 1 HE 32 W ES 0.15 A 34.00 W 3100 lm 1 HE 35 W 0.17 A 38.00 W 3300 lm 1 HE 35 W XT 0.17 A 38.00 W 3300 lm 1 Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 6 of 6

Read more less

OSRAM Quicktronic QT-FQ 2X80 4050300825564 Product family features   Supply voltage: 220…240 V   Line voltage: 198…264 V   Line frequency: 50 Hz | 60 Hz   Lamp start with optimum filament preheating   Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max.10 % failure rate)   Energy Efficiency Index EEI: A2   Safety: to EN 61347-2-3   Automatic shutdown of defective lamps and at end of life(EoL T.2) Product family benefits – Long lamp life– No adverse effect from frequent on/off switching– Automatic restart after lamp replacement– Perfect lamp start for applications with motion sensors – VDE/VDE EMC certified system– Very high energy efficiency due to cut-off technology Areas of application – Industry– Open-plan offices, corridors and storage rooms – Public buildings– Sports halls and factories– Strip lighting– Modernization of existing systems Product Data Sheet

Read more less

4/6/8w T5 ballast 18x41mm

Read more less

Technical Specifications for Helvar T8 58W Twin Ballast Actual Wattage 58 W Ballast Type High Frequency (Standard) Dimming? Non-Dimmable Height 28 mm Helvar Part Code EL2x58HF Lamp Type T8 Length 280 mm Linear 2x58 Watt Manufacturer Helvar No. Of Lamps Twin (2x) Type Control Gear Width 30 mm
