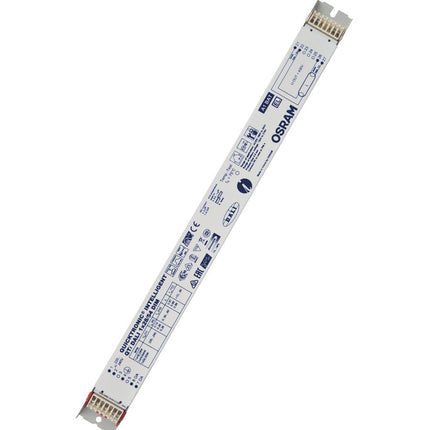

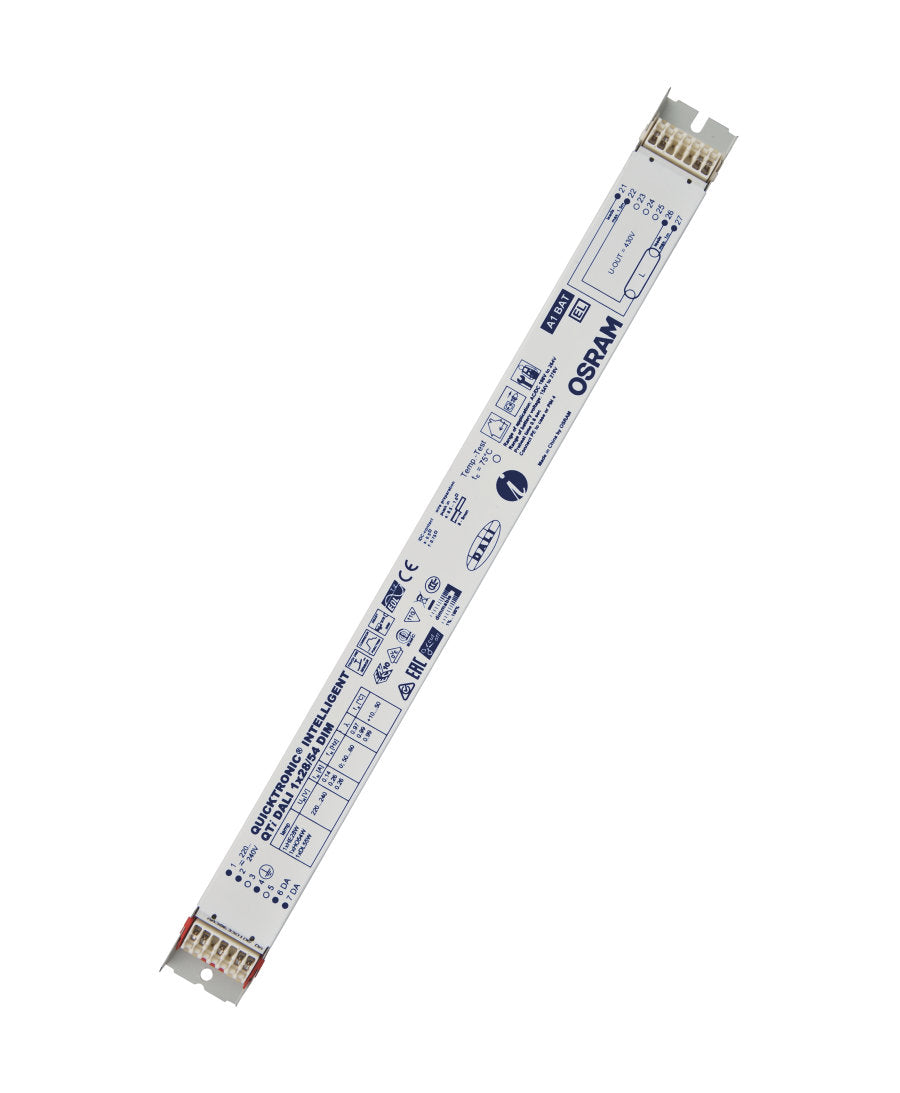

Name: QTi DALI 1X28/54 DIM
Brand: Osram
SKU: QTIDALI12854D-OS
Price: 64.04 GBP

QTi DALI 1X28/54 DIM

Osram
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Product family benefits

System+ Guarantee available
Easy integration in luminaire thanks to same dimensions like DALI GI ECG
TouchDIM function for easy and inexpensive dimming of several ECGs
Same luminous flux with direct and alternating current
Dimming of amalgam lamps without flickering or reduced lifespan
Automatic restart after lamp replacement

DALI product features

Control via the DALI interface
Compliance with the DALI Version-1 and IEC 60929
Control input protected against overvoltage and polarity reversal (OSRAM ECG)

Touch DIM and Touch DIM Sensor function

Manual dimming without controller and with standard switches
Including memory function (double click) and soft start

Areas of application

Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Sports halls and factories
Strip lighting
Shop lighting
Suitable for luminaires of protection class I

References / Links
For more information on the system guarantee and the terms and conditions of the guarantee visit www.osram.com/system-guarantee

Data sheet

More downloads

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

154…276 V

Maximum output power

54 W

Efficiency in full-load

92 %

Operating frequency

44…120 kHz

Max. ECG no. on circuit breaker 10 A (B)

17

Max. ECG no. on circuit breaker 16 A (B)

28

Inrush current

24 A

Light technical data

Starting time

0.6 s

Dimensions & weight

Length

360.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

350.0 mm

Product weight

270.00 g

Cable cross-section, output side

0.5…1.5 / 0.5…1.0 mm²

Cable cross-section, input side

0.5…1.5 / 0.5…1.0 mm²

Temperatures & operating conditions

Ambient temperature range

+10…+50 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

100000 h

Additional product data

Suitable for lamp power (1 lamp)

28…54 W

Capabilities

Dimming interface

DALI / Touch DIM / Touch DIM Sensor

Dimming range

1…100 %

Dimmable

Yes

Overheating protection

Power reduction and switch off at T > 75 °C at the tc point

Suitable for fixtures with prot. class

I

End of lamp life safety shutdown

EOL T.2

Intended for no-load operation

No

Max. cable length to lamp/LED module

1.0 m / 1.5 m

Certificates & standards

Approval marks – approval

VDE / VDE-EMC / EL / EAC / RCM / CCC

Standards

Acc. to EN 55015; EN 55022/Acc. to EN 61547/Acc. to IEC 61000-3-2/EN 61000-3-2/Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to IEC 62386-101:Ed1/Acc. to IEC 62386-102:Ed1

Protection class

I

Type of protection

IP20

EEI – Energy Label

A1 BAT

Logistical data

Commodity code

850410809000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

14-04-2022

Primary Article Identifier

4050300870809

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

e3bb252d-4962-4b8e-bccd-cfc5cb474662

Packaging information

EAN	Unit	Piece	Dimension l x w x h	Weight	Volume
4050300870809	UNV	1	360mm x 30mm x 21mm	270.00g	0.23dm³
4050300870816	VS	20	392mm x 98mm x 165mm	5579.99g	6.34dm³
