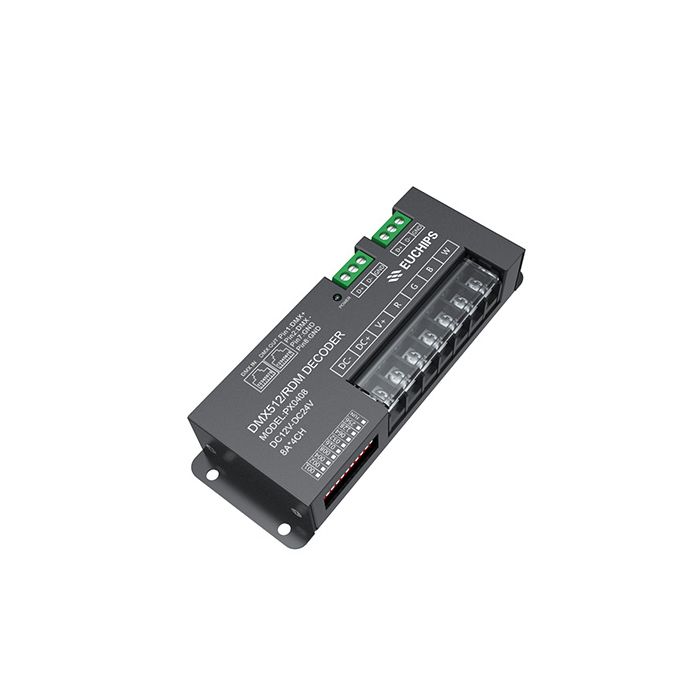

PX0408 - DMX512/RDM RGBW Decoder

Description

PX series DMX512/RDM decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal.

1~4 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Technical:
Output Channels 1-4
Output Voltage 12-24
VDC Output Current 8A*4CH
Output Power 384W(12V) / 768W(24V)
Input Voltage 12-24VDC
Standy Loss <1W
Control Signal DMX512 1990/RDM 2009
Dimensions 140x50x26mm

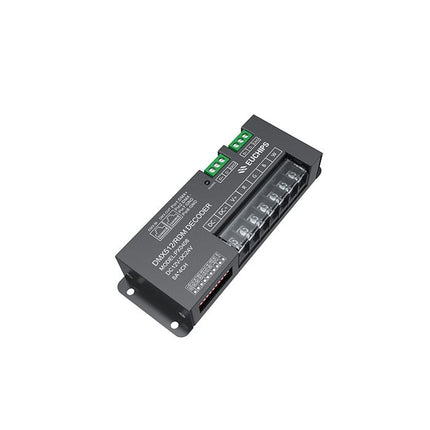

PX0408 - DMX512/RDM RGBW Decoder

Product form

SKU: PX0408

Trade price available - contact us

£42.64 Excl. VAT

(inc. 20% VAT): £51.17

    • Contact us to confirm availability

    Description

    PX series DMX512/RDM decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal.

    1~4 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

    Technical:
    Output Channels 1-4
    Output Voltage 12-24
    VDC Output Current 8A*4CH
    Output Power 384W(12V) / 768W(24V)
    Input Voltage 12-24VDC
    Standy Loss <1W
    Control Signal DMX512 1990/RDM 2009
    Dimensions 140x50x26mm
