PCA22854T5ECO-TR 2X28/54w T5 lp 22185100

Description

Please note this item is obsolete, If you are using dali dimming please use the ALTERNATIVE

If you are using DSI dimming then please do not order as we aare unable to supply

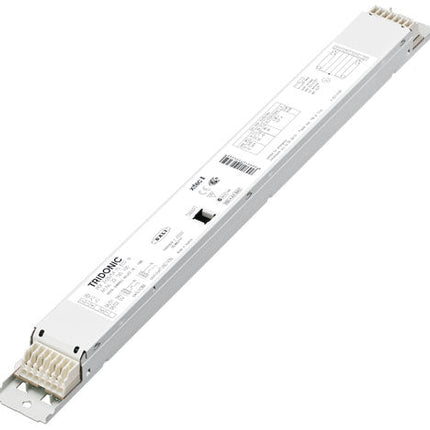

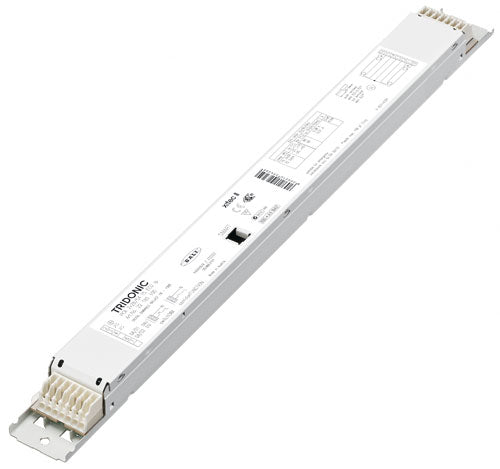

Digital Dimming Ballast to run 2 X 28/54w T5 tubes - PCA 2x28/54 T5 ECO - 22185100

Product description

  • Processor-controlled ballast with xitec II inside
  • Highest possible energy class CELMA EEI = A1 BAT (1)
  • Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
  • Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
  • Multilamp management
  • OEM-specific reserved memory areas
  • 5 years guarantee

Interfaces

  • DALI
  • DSI
  • switchDIM (with memory function + selectable dimming rate)
  • corridorFUNCTION (3 preprogrammed profiles)
  • Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs

Functions

  • Intelligent Temperature Guard (overtemperature protection)
  • Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
  • Optimum filament heating in any dimmer setting
  • Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
  • corridorFUNCTION with ambient light control
  • Automatically triggered emergency lighting value in DC mode, 15 %
  • For emergency lighting systems as per EN 50172
  • Automatic start after replacement of defective lamps
  • Automatic shutdown if the lamp is faulty
22185100

PCA22854T5ECO-TR 2X28/54w T5 lp 22185100

Product form

SKU: PCA22854T5ECO-TR
Barcode: 22185100

Trade price available - contact us

£82.23 Excl. VAT

(inc. 20% VAT): £98.68

    • Contact us to confirm availability

    Description

    Please note this item is obsolete, If you are using dali dimming please use the ALTERNATIVE

    If you are using DSI dimming then please do not order as we aare unable to supply

    Digital Dimming Ballast to run 2 X 28/54w T5 tubes - PCA 2x28/54 T5 ECO - 22185100

    Product description

    • Processor-controlled ballast with xitec II inside
    • Highest possible energy class CELMA EEI = A1 BAT (1)
    • Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
    • Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
    • Multilamp management
    • OEM-specific reserved memory areas
    • 5 years guarantee

    Interfaces

    • DALI
    • DSI
    • switchDIM (with memory function + selectable dimming rate)
    • corridorFUNCTION (3 preprogrammed profiles)
    • Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs

    Functions

    • Intelligent Temperature Guard (overtemperature protection)
    • Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
    • Optimum filament heating in any dimmer setting
    • Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
    • corridorFUNCTION with ambient light control
    • Automatically triggered emergency lighting value in DC mode, 15 %
    • For emergency lighting systems as per EN 50172
    • Automatic start after replacement of defective lamps
    • Automatic shutdown if the lamp is faulty
    22185100
