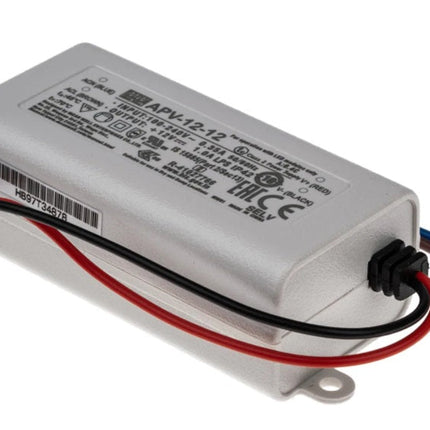

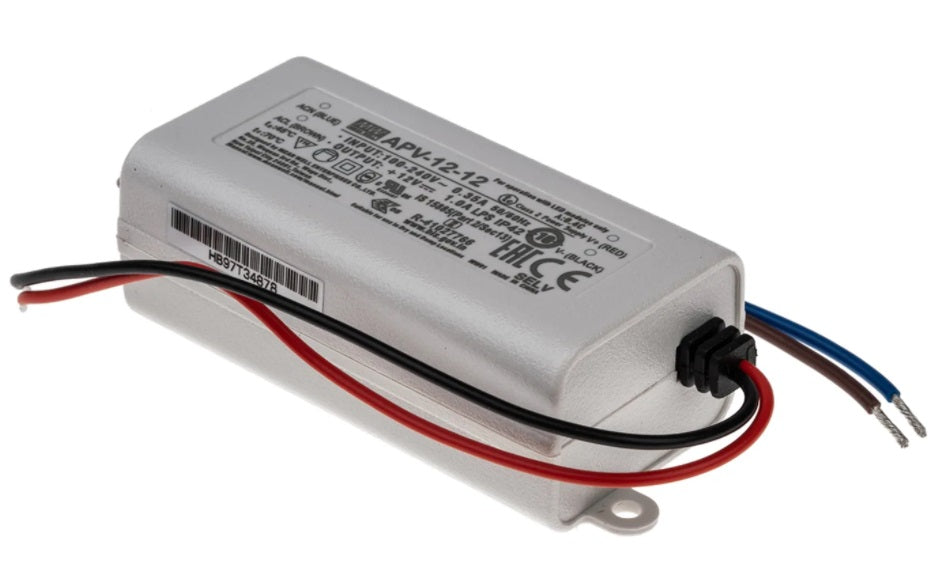

Mean Well APV-12-12 Constant Voltage LED Driver 12W 12V

Description

Mean Well 12W and 16W Constant Voltage LED Driver / Power Supply - APV Series

APV series 12W and 16W constant voltage LED driver / power supply with universal AC input. These low cost, highly reliable LED drivers / power supplies have a fully isolated plastic case and suitable uses include LED lighting and moving sign applications.

Full range universal AC input
Small, compact, fully isolated plastic case
Free air convection cooling
100% full load burn-in test
Short circuit, overload and over voltage protection
Pass LPS
EMC compliance to EN55022 (CISPR22) Class B, EN55015, EN61547
Harmonic current compliance to EN61000-3-2 Class A, EN61000-3-3


Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
12W versions: Derate output above 40°C
16W versions: Derate output above 40°C

Standards

Design refer to TUV EN60950-1, EN61347-2-13, UL8750

Mean Well APV-12-12 Constant Voltage LED Driver 12W 12V

Product form

SKU: APV-12-12

Trade price available - contact us

£8.19 Excl. VAT

(inc. 20% VAT): £9.83

    • Contact us to confirm availability

    Description

    Mean Well 12W and 16W Constant Voltage LED Driver / Power Supply - APV Series

    APV series 12W and 16W constant voltage LED driver / power supply with universal AC input. These low cost, highly reliable LED drivers / power supplies have a fully isolated plastic case and suitable uses include LED lighting and moving sign applications.

    Full range universal AC input
    Small, compact, fully isolated plastic case
    Free air convection cooling
    100% full load burn-in test
    Short circuit, overload and over voltage protection
    Pass LPS
    EMC compliance to EN55022 (CISPR22) Class B, EN55015, EN61547
    Harmonic current compliance to EN61000-3-2 Class A, EN61000-3-3


    Note

    For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
    MTBF to MIL-HDBK-217F
    12W versions: Derate output above 40°C
    16W versions: Derate output above 40°C

    Standards

    Design refer to TUV EN60950-1, EN61347-2-13, UL8750
