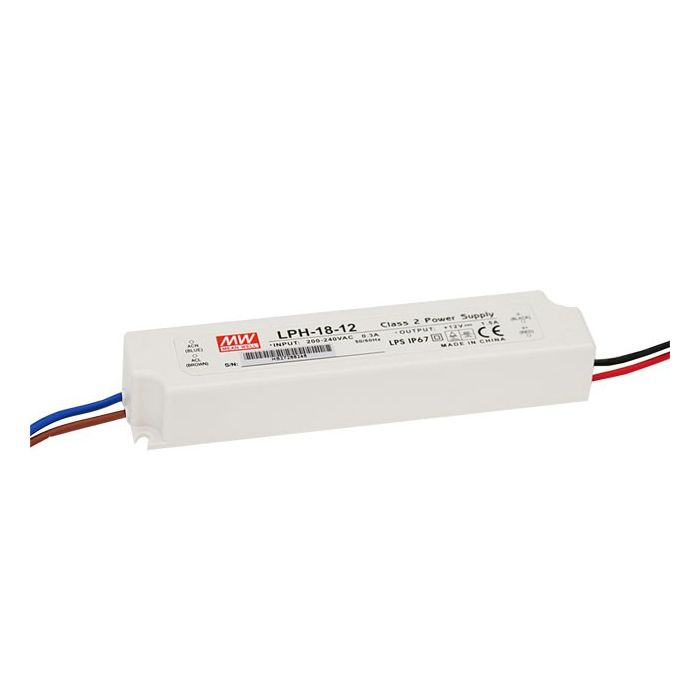

LPH-18-S - Mean Well LPH-18 Series IP67 Rated LED Driver 18W - 20W 12V – 36V

Description

Constant VoltageFully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: 180~264VACClass 2 power unitIsolation class II, no F.G.Cooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information Output Wattage (W) 18 Dimmable (Type) Choose Option Dimensions 140 x 30 x 20 EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 180~264VAC Safety Standards TUV EN60950-1 approved, Design refer to UL1310, EN61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPH-18-SPEC.PDF

LPH-18-S - Mean Well LPH-18 Series IP67 Rated LED Driver 18W - 20W 12V – 36V

Product form

SKU: LPH-18-S

Trade price available - contact us

£13.86 Excl. VAT

(inc. 20% VAT): £16.63

    • Contact us to confirm availability

    Description

    Constant VoltageFully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: 180~264VACClass 2 power unitIsolation class II, no F.G.Cooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
    More Information Output Wattage (W) 18 Dimmable (Type) Choose Option Dimensions 140 x 30 x 20 EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 180~264VAC Safety Standards TUV EN60950-1 approved, Design refer to UL1310, EN61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPH-18-SPEC.PDF
