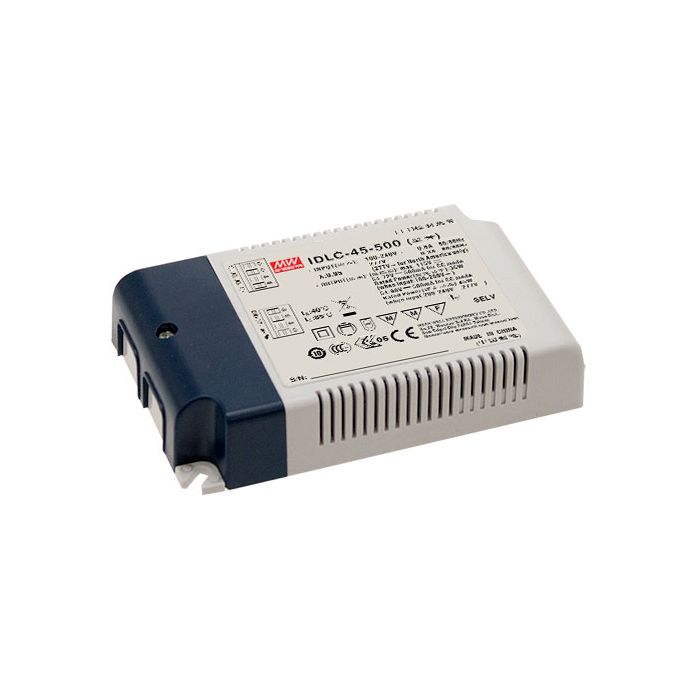

IDLC-45-1050 - Mean Well LED Driver IDLC-45-1050 Series 45.15W 1050mA

Description

Constant Current mode outputFlicker free designProtections: Short circuitOther features:Plastic housing with class II designBuilt-in active PFC functionNo load power consumption <0.5W (Blank-Type)Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 45.15 Output Current 1050mA Dimmable (Type) Yes Output Voltage Range (V) 26~43 DC Output Adjustment 26-43V Dimensions 120x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 90-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-45-SPEC.pdf

IDLC-45-1050 - Mean Well LED Driver IDLC-45-1050 Series 45.15W 1050mA

Product form

SKU: IDLC-45-1050

Trade price available - contact us

£74.74 Excl. VAT

(inc. 20% VAT): £89.69

    • Contact us to confirm availability

    Description

    Constant Current mode outputFlicker free designProtections: Short circuitOther features:Plastic housing with class II designBuilt-in active PFC functionNo load power consumption <0.5W (Blank-Type)Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output3 years warranty
    More Information Manufacturer Mean Well Output Wattage (W) 45.15 Output Current 1050mA Dimmable (Type) Yes Output Voltage Range (V) 26~43 DC Output Adjustment 26-43V Dimensions 120x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 90-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-45-SPEC.pdf
