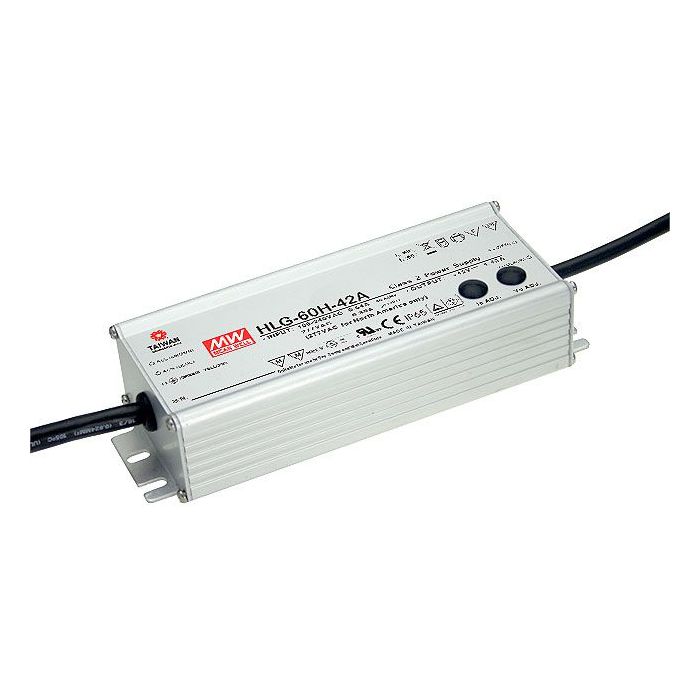

HLG-60H-BS - Mean Well HLG-60HB Series IP67 Rated LED Driver 60W 15V – 54V

Description

IP67 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 90.5%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Class 2 power unitIP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
More Information Manufacturer Mean Well Output Wattage (W) 60 Dimmable (Type) 1-10VDC, PWM signal, resistance EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-60H-spec.pdf

HLG-60H-BS - Mean Well HLG-60HB Series IP67 Rated LED Driver 60W 15V – 54V

Product form

SKU: HLG-60H-12A

Trade price available - contact us

£46.73 Excl. VAT

(inc. 20% VAT): £56.08

    • Contact us to confirm availability

    Description

    IP67 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 90.5%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Class 2 power unitIP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
    More Information Manufacturer Mean Well Output Wattage (W) 60 Dimmable (Type) 1-10VDC, PWM signal, resistance EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-60H-spec.pdf
