Description
These are on a 2 week delivery time

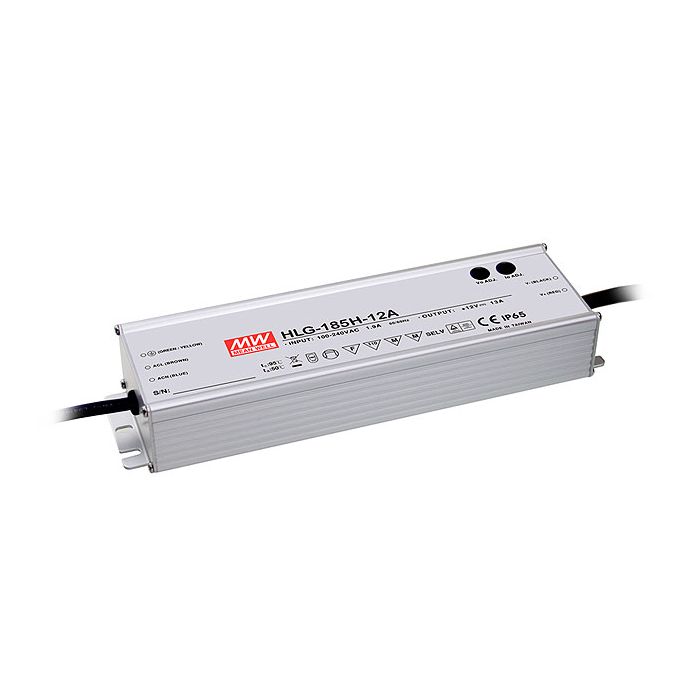

This is the spare driver for a
Viking 6309-400-8256-A robotic mower
IP65 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 95%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Optional CQC models availableOutput voltage and C.C level can be adjusted through internal potentiometer
More Information Manufacturer Mean Well Output Wattage (W) 185 Output Voltage 42V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment 38 ~ 46V Dimensions 228*68*38.8mm EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1 Output Voltage Options Single Working Temperature -40~+70°C (refer to output derating curve) PDF Datasheet HLG-185H-spec_1.pdf
