Name: Harvard/Venture CL700D2-240-C 33W 700Ma Dali Dimmable
Brand: HARVARD
SKU: CL700D2-240-C-hv
Price: 49.17 GBP

Harvard/Venture CL700D2-240-C 33W 700Ma Dali Dimmable

HARVARD
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

this product is not currently available , we would suggest an alternative please see below

https://www.easy-controlgear.com/products/mackwell-led-driver-dali-dimmable-33w-700ma-48v?_pos=2&_sid=78b811065&_ss=r

Product Details

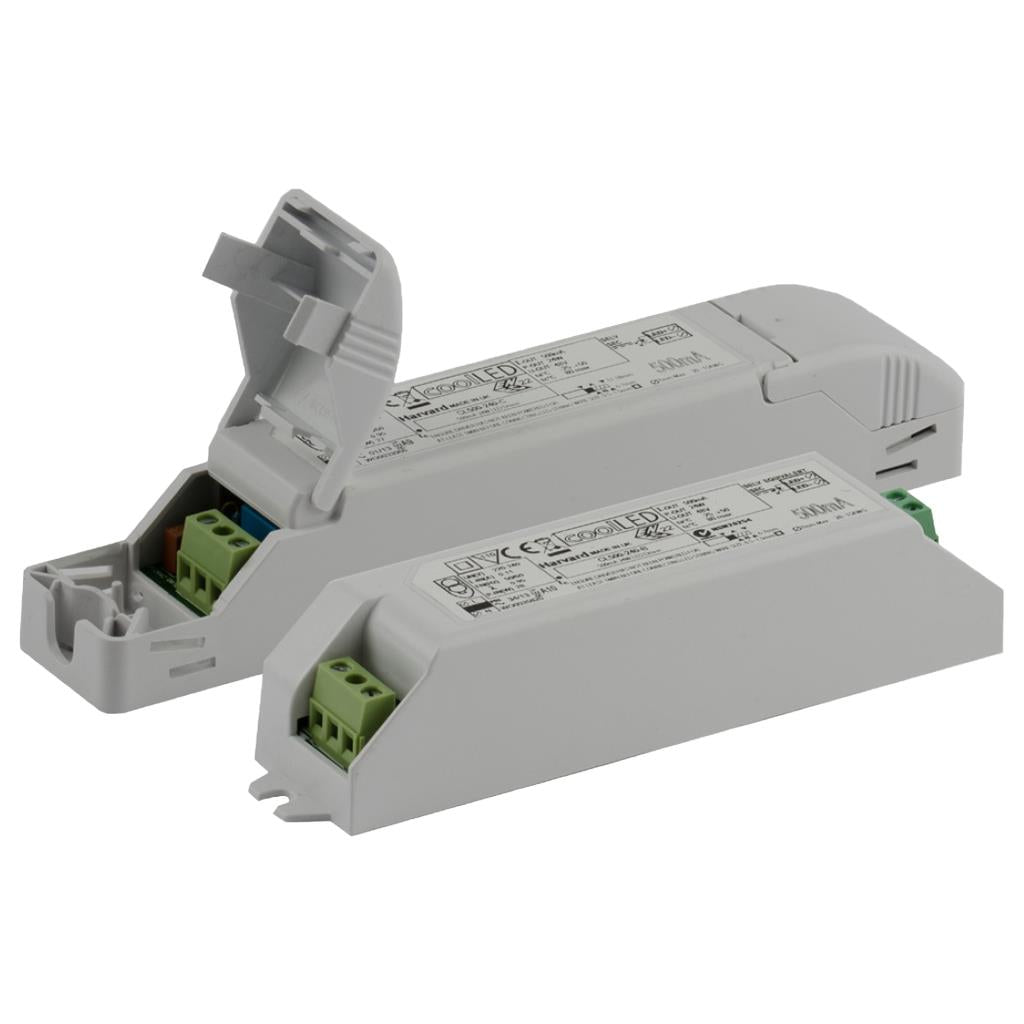

Harvard CoolLED LED Driver provide a high-performance solution for powering high-brightness LEDs from a mains supply. It has an ability to control individual LED luminaries and simultaneous control of all or specified groups. High Efficiency and Long-Life design ensure cool operation and long life with extra benefit of a very low off power. Isolated DALI interface. Constant current output. Self-resetting thermal trip. Double insulated, electrical efficiency class II. Up to 88% efficiency. LED string fault reporting. Isolated DALI interface. Lamp fault reporting checks on LED string volts.

· Isolated DALI interface
· Constant current output
· Self resetting thermal trip
· LED string fault reporting
· Lamp fault reporting checks on LED string volts

Specifications

Technical data		Information
Brand	Harvard Power Systems	Commodity	8504409090
Item number	CL700D2-240-C	Warranty pack	60 Months Bring-In
Series	CL	RoHS	Compliant
Description	AC-DC 33W LED driver Constant Current mode (CC); Max. output 48Vdc at 0.7A; IP20; Dimming with DALI; Remote control	Packing Quantity	40
Application	LED EN 61347	Net weight (gram)	130
Technology	AC/DC Constant Current C.C.
Format	Box Type - Enclosed
Output Power (W)	33
Output Voltage (V)	48
Output Current (A)	0.7
Input Voltage (V)	220 - 240
IP Rating	IP20
Width (mm)	32
Height (mm)	32
Depth (mm)	180
Control Signals	Remote Sense
Dimming Technology	DALI
