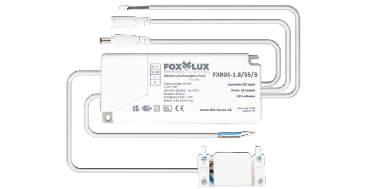

FXR03-1.8-55-3

Technical Data FXR03-1.8-55-3
Rated Supply Voltage 220‐240V AC
Mains Frequency 50 / 60 Hz
Max. Power Consumption 3W
Standby Power <0.8W
Emergency Output Power 1.8W nominal
LED Forward Voltage Range 10 to 50V
Max. Output Voltage 60V DC
Rated Emergency Duration 3 hrs*
Battery Charge Time 8 hrs (Initial up to 16 hrs)
Operational Temperature 0°C to 60°C
Max. Case Temp. 70°C
Insulation Class II
SELV Yes

Battery Type 1 x 18650 Li-ion 3.6V 2.5Ah
Battery Code FXC3.6‐2500‐A35
*To optimise long-term battery performance, the remote pack will operate a luminaire for 3 hours before automatically shutting down.

Logistics Information FXR03-1.8-55-3
Product Dimensions 135 x 59 x 23mm
Net Weight 0.20kg
Box Dimensions 245 x 85 x 30mm
Gross Weight 0.24kg
Box Qty 40pcs
Carton Dimensions 340 x 256 x 340mm
Carton Weight 9.80kg
Commodity Code 8504318050
