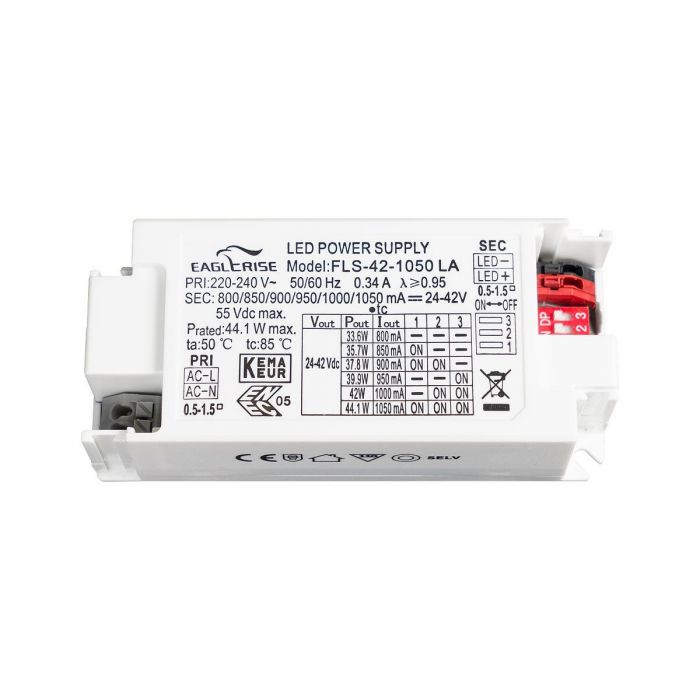

FLS-42-1050 LD ADV Selectable Constant Current LED Driver

Description

The Eaglerise FLS-42-1050 Selectable Constant Current LED Driver features selectable output current via dip switches between 800mA ~ 1050mA. Suplied with 5year warranty.  Features Protections: short circuit/over load/over voltage IP20 Rated Flicker Free Power Factor ?0.95 Efficiency ?86% Class II, SELV Current adjustment by Dip switch 5 years warranty
More Information Manufacturer Eaglerise Output Wattage (W) 40 Output Current Selectable Dimmable (Type) No Output Voltage Range (V) 24-42VDC DC Output Adjustment No Dimensions 97 x 43 x 30 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -20 ~ +50C PDF Datasheet FLS-42-1050.pdf

FLS-42-1050 LD ADV Selectable Constant Current LED Driver

Product form

SKU: FLS-42-1050-LD-ADV

Trade price available - contact us

£17.07 Excl. VAT

(inc. 20% VAT): £20.48

    • Contact us to confirm availability

    Description

    The Eaglerise FLS-42-1050 Selectable Constant Current LED Driver features selectable output current via dip switches between 800mA ~ 1050mA. Suplied with 5year warranty.  Features Protections: short circuit/over load/over voltage IP20 Rated Flicker Free Power Factor ?0.95 Efficiency ?86% Class II, SELV Current adjustment by Dip switch 5 years warranty
    More Information Manufacturer Eaglerise Output Wattage (W) 40 Output Current Selectable Dimmable (Type) No Output Voltage Range (V) 24-42VDC DC Output Adjustment No Dimensions 97 x 43 x 30 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -20 ~ +50C PDF Datasheet FLS-42-1050.pdf
