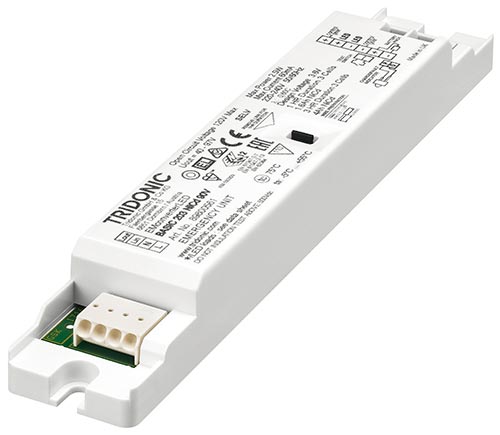

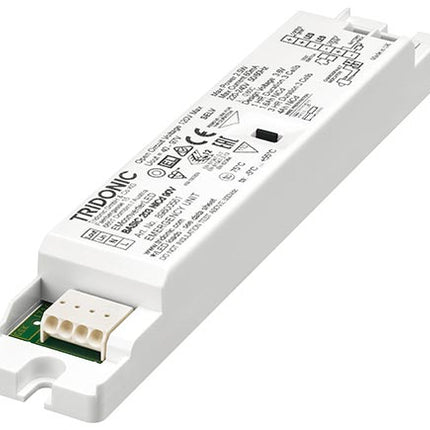

EMconverterLED BASIC 204 NiCd/NiMH 50V 89800560

Description

EM converterLED BASIC NiCd/NiMH 50 V

BASIC version

  • Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection.

    Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection.

Product description

  • Emergency lighting LED Driver for manual testing
  • For self-contained emergency lighting
  • For LED modules with a forward voltage of 10 – 54 V
  • SELV for output voltage < 60 V DC
  • Low profile casing (21 x 30 mm cross-section)
  • For luminaire installation
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee

Properties

  • Non maintained operation
  • 1 or 3 h rated duration
  • Operating time selectable with plug (duration link)
  • Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
  • 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
  • Automatic shutdown of output if LED load is out of range
  • Constant power output
  • Maximum light output for all LED modules
  • Electronic charge system
  • Deep discharge protection
  • Short-circuit-proof battery connection
  • Polarity reversal protection for battery

Batteries

  • High-temperature cells
  • NiCd or NiMH batteries
  • D, Cs or LA cells
  • 4 year design life
  • 1 year guarantee
  • For battery compatibility refer to data sheet

EMconverterLED BASIC 204 NiCd/NiMH 50V 89800560

Product form

SKU: EMCONLB20450-TR
Barcode: 89800560

Trade price available - contact us

  • Contact us to confirm availability

Description

EM converterLED BASIC NiCd/NiMH 50 V

BASIC version

  • Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection.

    Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection.

Product description

  • Emergency lighting LED Driver for manual testing
  • For self-contained emergency lighting
  • For LED modules with a forward voltage of 10 – 54 V
  • SELV for output voltage < 60 V DC
  • Low profile casing (21 x 30 mm cross-section)
  • For luminaire installation
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee

Properties

  • Non maintained operation
  • 1 or 3 h rated duration
  • Operating time selectable with plug (duration link)
  • Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
  • 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
  • Automatic shutdown of output if LED load is out of range
  • Constant power output
  • Maximum light output for all LED modules
  • Electronic charge system
  • Deep discharge protection
  • Short-circuit-proof battery connection
  • Polarity reversal protection for battery

Batteries

  • High-temperature cells
  • NiCd or NiMH batteries
  • D, Cs or LA cells
  • 4 year design life
  • 1 year guarantee
  • For battery compatibility refer to data sheet
