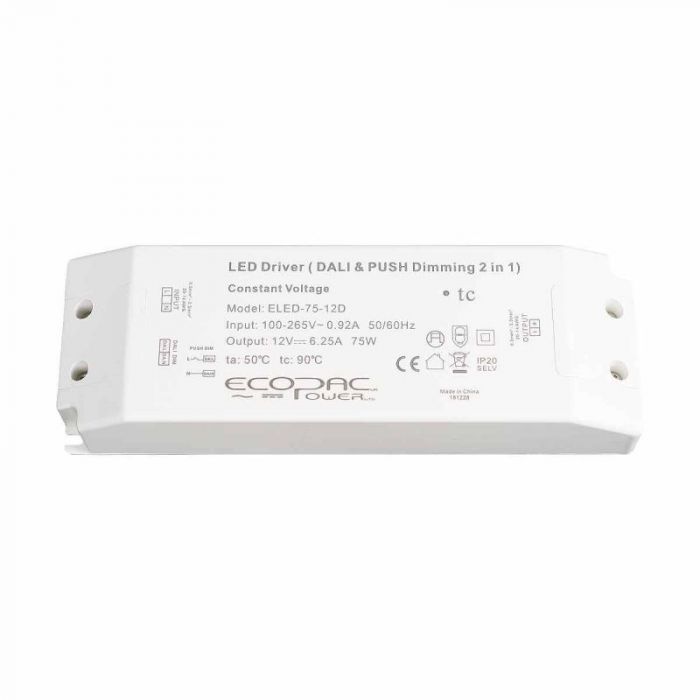

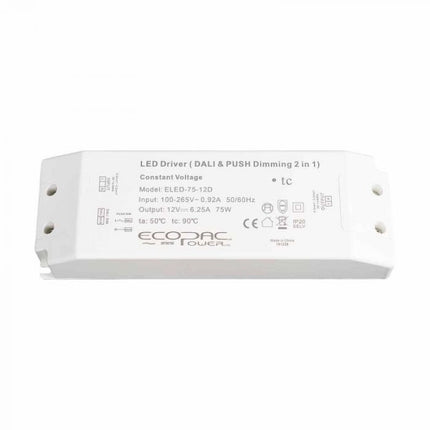

ELED-75-12D - Ecopac ELED-75-12D DALI Dimmable LED Driver 75W 12V

Description

The Ecopac ELED-75-12D DALI Dimmable LED Driver is 75W 12VDC output.  Constant Voltage  / PWM Output Design Dali & Push Dimmable Protections: Short circuit/ Over Voltage/ Over Temperature Other features: Dimming range from 0.1% to 100% Input Range 200-265VAC Output 12VDC Built-in PFC function IP20design for indoor or outdoor installations 87% efficiency 3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 75 Output Voltage 12V Dimmable (Type) DALI, Push Dimming DC Output Adjustment No Dimensions 355 x 215 x 215 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-75-D.pdf

ELED-75-12D - Ecopac ELED-75-12D DALI Dimmable LED Driver 75W 12V

Product form

SKU: ELED-75-12D

Trade price available - contact us

  • Contact us to confirm availability

Description

The Ecopac ELED-75-12D DALI Dimmable LED Driver is 75W 12VDC output.  Constant Voltage  / PWM Output Design Dali & Push Dimmable Protections: Short circuit/ Over Voltage/ Over Temperature Other features: Dimming range from 0.1% to 100% Input Range 200-265VAC Output 12VDC Built-in PFC function IP20design for indoor or outdoor installations 87% efficiency 3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 75 Output Voltage 12V Dimmable (Type) DALI, Push Dimming DC Output Adjustment No Dimensions 355 x 215 x 215 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-75-D.pdf
