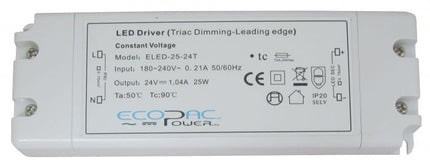

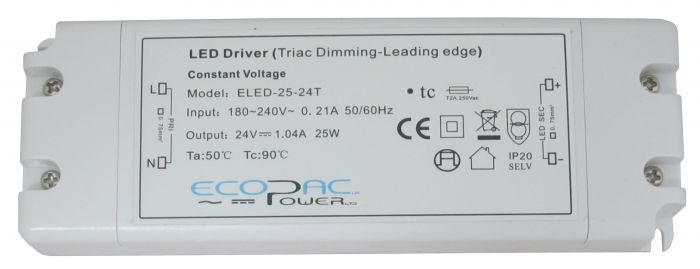

ELED-25-24t Ecopac ELED-25 Series Constant Voltage LED Driver 25W 24V

Description

Works with leading edge and Trailing Edge TRIAC dimmers Constant Voltage  Protections: Short Circuit/ Over Loading/ Over Current   Other Features: Universal AC Input: 180-240VAC High efficiency up to 85% Cooling by free air convection Lightweight plastic  case
More Information Manufacturer Ecopac Power Output Wattage (W) 25 Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 155x 54x 20mm EMC Standards EN55015, EN61000-3-2,3 (>50% loading) Input Voltage 180-240Vac Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40°C - +60°C PDF Datasheet ELED-25-T.pdf

ELED-25-24t Ecopac ELED-25 Series Constant Voltage LED Driver 25W 24V

Product form

SKU: ELED-25-24T

Trade price available - contact us

  • Contact us to confirm availability

Description

Works with leading edge and Trailing Edge TRIAC dimmers Constant Voltage  Protections: Short Circuit/ Over Loading/ Over Current   Other Features: Universal AC Input: 180-240VAC High efficiency up to 85% Cooling by free air convection Lightweight plastic  case
More Information Manufacturer Ecopac Power Output Wattage (W) 25 Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 155x 54x 20mm EMC Standards EN55015, EN61000-3-2,3 (>50% loading) Input Voltage 180-240Vac Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40°C - +60°C PDF Datasheet ELED-25-T.pdf
