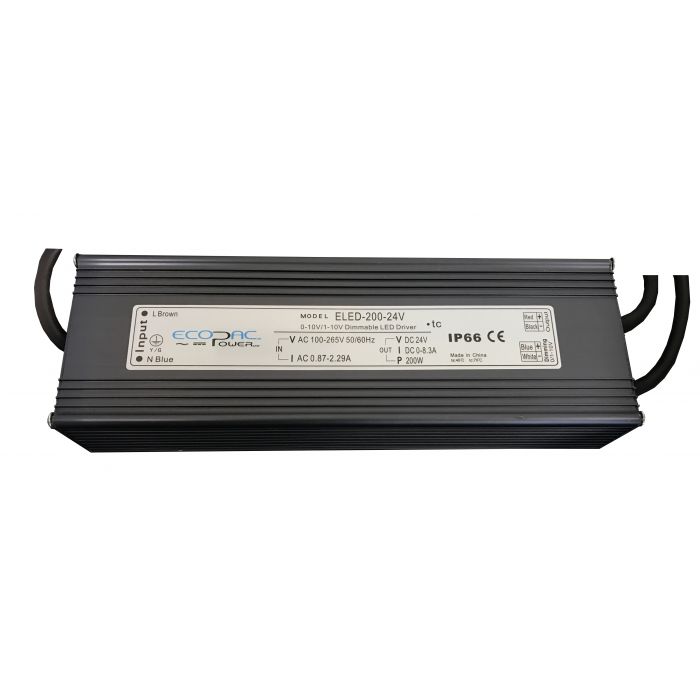

ELED-200-24V - Ecopac Constant Voltage 1-10v Dimmable

Description

0-10V/ Potentiometer/ 10V PWM dimmableConstant voltage designProtections: Short circuit/ Overload/ Over Voltage/ Over TemperatureOther features:Universal AC input/ Full rangeIP66 design for indoor or outdoor installationsBuilt-in PFC functionCooling by free air convection85% efficiency3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 200 Output Voltage 24V Dimmable (Type) 0-10V, Potentiometer, 10V PWM dimmable Dimensions 256x 80x 53 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level Input Voltage 100-265VAC Safety Standards EN61347-1-12 IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-180-200V-Series.pdf

ELED-200-24V - Ecopac Constant Voltage 1-10v Dimmable

Product form

SKU: ELED-200-24V
Barcode: Eled-200-24v

Trade price available - contact us

  • Contact us to confirm availability

Description

0-10V/ Potentiometer/ 10V PWM dimmableConstant voltage designProtections: Short circuit/ Overload/ Over Voltage/ Over TemperatureOther features:Universal AC input/ Full rangeIP66 design for indoor or outdoor installationsBuilt-in PFC functionCooling by free air convection85% efficiency3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 200 Output Voltage 24V Dimmable (Type) 0-10V, Potentiometer, 10V PWM dimmable Dimensions 256x 80x 53 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level Input Voltage 100-265VAC Safety Standards EN61347-1-12 IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-180-200V-Series.pdf
