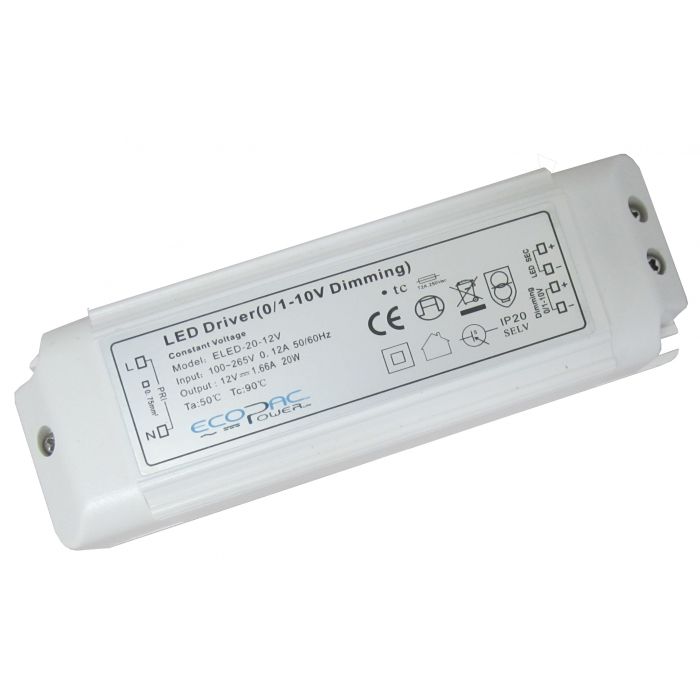

ELED-20-12V - Ecopac LED Driver ELED-20-12V 20W 12V

Description

Universal AC input/full range 100-265VACBuilt-in active PFC functionHigh efficiency up to 86%Protections: Short circuit/Over current/ Over loadingCooling by free air convectionFully isolated plastic case with terminals IP20Class 2 Power unitThree in one dimming function (0/1-10Vdc or PWM signal or resistance)Dimming range: 0-100%Suitable for LED lighting and moving sign applicationsCompliance to worldwide safety regulations for lighting
More Information Manufacturer Ecopac Power Output Wattage (W) 20 Output Voltage 12V Dimmable (Type) 0-10V, Potentiometer, 10V PWM dimmable Dimensions 140x 45x 27mm EMC Standards Compliance to EN55015, EN61000-3-2 (>60%load), Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A Input Voltage 100-265Vac Safety Standards EN61347-1 EN61347-2-13 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet ELED-20-V_Seires.pdf

ELED-20-12V - Ecopac LED Driver ELED-20-12V 20W 12V

Product form

SKU: ELED-20-12V

Trade price available - contact us

  • Contact us to confirm availability

Description

Universal AC input/full range 100-265VACBuilt-in active PFC functionHigh efficiency up to 86%Protections: Short circuit/Over current/ Over loadingCooling by free air convectionFully isolated plastic case with terminals IP20Class 2 Power unitThree in one dimming function (0/1-10Vdc or PWM signal or resistance)Dimming range: 0-100%Suitable for LED lighting and moving sign applicationsCompliance to worldwide safety regulations for lighting
More Information Manufacturer Ecopac Power Output Wattage (W) 20 Output Voltage 12V Dimmable (Type) 0-10V, Potentiometer, 10V PWM dimmable Dimensions 140x 45x 27mm EMC Standards Compliance to EN55015, EN61000-3-2 (>60%load), Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A Input Voltage 100-265Vac Safety Standards EN61347-1 EN61347-2-13 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet ELED-20-V_Seires.pdf
