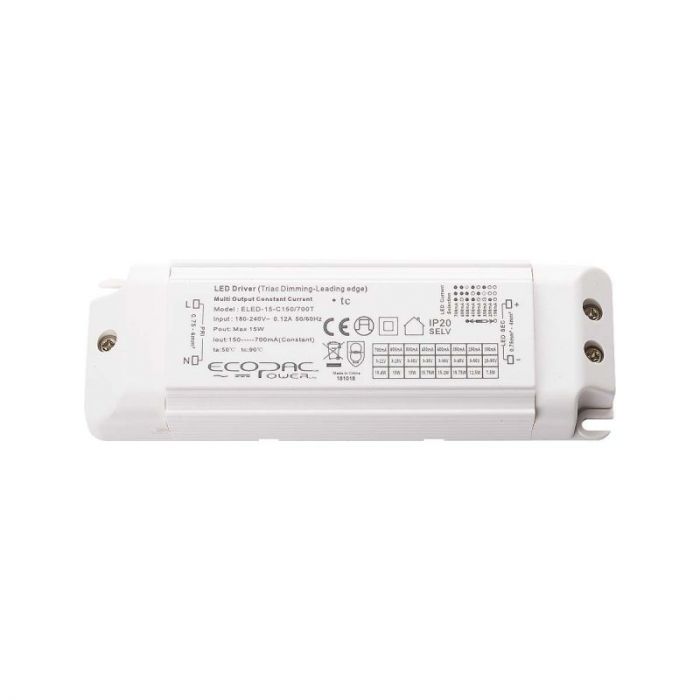

ELED-15-C150/700T Selectable Constant Current LED Driver 150-700mA

Description

Description

Obsolete please order either of the below depending on the Ma you are using

If between  250 /700Ma

https://www.easy-controlgear.com/products/eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=8&_sid=8e6a3d564&_ss=r

If you are using less than  250Ma

https://www.easy-controlgear.com/products/eled-10p-c100-450t-series-constant-current-led-drivers-4-2-10w?_pos=1&_sid=daab3a194&_ss=r

The Ecpoac Power ELED-15-C150/700T features the ability to select the output current required between 150mA and 700mA via a set of dip switches. This LED driver is also dimmable using triac dimming. Ecopac LED drivers are high quality at affordable cost and come complete with a 3 year warranty.  Constant current mode output Multiple current levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full protection housing IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable 3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Current Selectable Dimmable (Type) Leading edge, Triac Output Voltage Range (V) 3-50V DC Output Adjustment 150-700mA Dimensions 140x 45x 28 (LxWxH) Mm EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-15-CT.pdf

ELED-15-C150/700T Selectable Constant Current LED Driver 150-700mA

Product form

SKU: ELED-15-C150/700T
Barcode: ELED-15-C150/700T

Trade price available - contact us

£33.81 Excl. VAT

(inc. 20% VAT): £40.57

 More payment options
    • Contact us to confirm availability
    Description

    Description

    Obsolete please order either of the below depending on the Ma you are using

    If between  250 /700Ma

    https://www.easy-controlgear.com/products/eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=8&_sid=8e6a3d564&_ss=r

    If you are using less than  250Ma

    https://www.easy-controlgear.com/products/eled-10p-c100-450t-series-constant-current-led-drivers-4-2-10w?_pos=1&_sid=daab3a194&_ss=r

    The Ecpoac Power ELED-15-C150/700T features the ability to select the output current required between 150mA and 700mA via a set of dip switches. This LED driver is also dimmable using triac dimming. Ecopac LED drivers are high quality at affordable cost and come complete with a 3 year warranty.  Constant current mode output Multiple current levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full protection housing IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable 3 years warranty
    More Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Current Selectable Dimmable (Type) Leading edge, Triac Output Voltage Range (V) 3-50V DC Output Adjustment 150-700mA Dimensions 140x 45x 28 (LxWxH) Mm EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-15-CT.pdf
