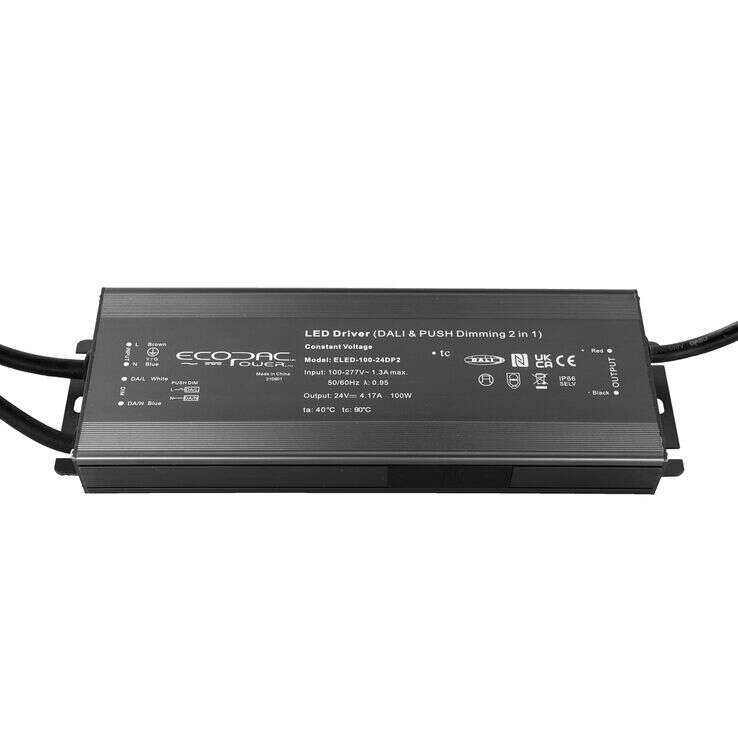

ELED-100-DP2 Series DALI Dimmable Constant Voltage LED Drivers 100W 12v/24v IP66

Description

ELED-100-DP2 Series Features:

Features:

• Constant voltage/ PWM Output (NFC regulation)
• DALI & Push dimming function
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 89%
• Protections: Short circuit/ Over load/
Over temperature
• Cooling by free air convection
• IP66 design for indoor and outdoor installation.
• Suitable for intelligent LED lighting



Suitable replacement for  the Ansell  ADDIM100/24V/DD

Wattage 100 100
Input Voltage 100~277VAC 100~277VAC
Output Current 8.34 4.17
Output Voltage 12 24
Dimensions 231x 78 x 25.1 mm 231x 78 x 25.1 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, EN62493, IP66
EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load)

ELED-100-DP2 Series DALI Dimmable Constant Voltage LED Drivers 100W 12v/24v IP66

Product form

SKU: ELED-100-12DP2

Trade price available - contact us

  • Contact us to confirm availability

Description

ELED-100-DP2 Series Features:

Features:

• Constant voltage/ PWM Output (NFC regulation)
• DALI & Push dimming function
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 89%
• Protections: Short circuit/ Over load/
Over temperature
• Cooling by free air convection
• IP66 design for indoor and outdoor installation.
• Suitable for intelligent LED lighting



Suitable replacement for  the Ansell  ADDIM100/24V/DD

Wattage 100 100
Input Voltage 100~277VAC 100~277VAC
Output Current 8.34 4.17
Output Voltage 12 24
Dimensions 231x 78 x 25.1 mm 231x 78 x 25.1 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, EN62493, IP66
EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load)
