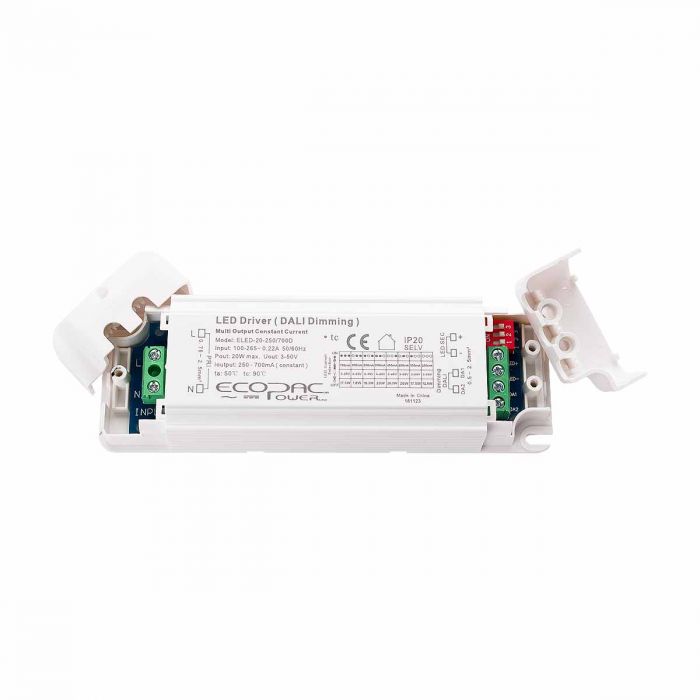

Ecopac ELED-20-250/700D Selectable Constant Current Dali Dimmable LED Driver 20W 250-700mA

Description

Constant Current mode output with selectable levels 250mA - 700mA via by dip switchs DALI dimming function Other features: AC input: 100-265VAC Built-in active PFC function Efficiency up to 86% Protections: Short Circuit/Over load/Over temperature IP20 design for indoor installation Cooling by free air convection Suitable for LED lighting and moving signs
More Information Manufacturer Ecopac Power Output Wattage (W) 7 Output Current 700mA Dimmable (Type) DALI Dimensions 140*45*28mm EMC Standards Compliance toEN55015,EN61000-3-2,3 (?50%load), Compliance to EN61000-4-2,3,4,5,6,11,EN61547,A light industry level ?surge4KV? Input Voltage 100-265Vac Safety Standards EN61347-1 EN61347-2-13 IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-20-250700D.pdf

Ecopac ELED-20-250/700D Selectable Constant Current Dali Dimmable LED Driver 20W 250-700mA

Product form

SKU: ELED-20-250/700D
Barcode: Eled-20-250/700D

Trade price available - contact us

  • Contact us to confirm availability

Description

Constant Current mode output with selectable levels 250mA - 700mA via by dip switchs DALI dimming function Other features: AC input: 100-265VAC Built-in active PFC function Efficiency up to 86% Protections: Short Circuit/Over load/Over temperature IP20 design for indoor installation Cooling by free air convection Suitable for LED lighting and moving signs
More Information Manufacturer Ecopac Power Output Wattage (W) 7 Output Current 700mA Dimmable (Type) DALI Dimensions 140*45*28mm EMC Standards Compliance toEN55015,EN61000-3-2,3 (?50%load), Compliance to EN61000-4-2,3,4,5,6,11,EN61547,A light industry level ?surge4KV? Input Voltage 100-265Vac Safety Standards EN61347-1 EN61347-2-13 IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-20-250700D.pdf
