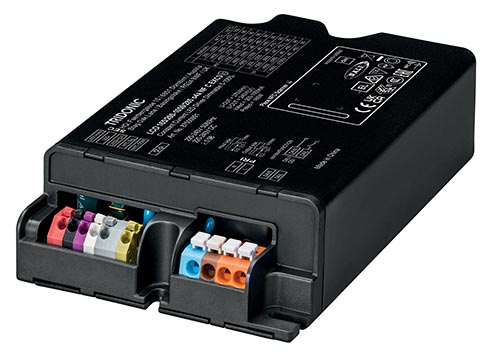

Driver LCO 165W 200–1050mA 285V one4all NFC C EXC3 87500991

Description

Driver LCO 165W 200–1050mA 285V one4all NFC C EXC3

excite NFC outdoor series

Product description

  • Dimmable built-in constant current LED driver
  • Dimming range 5 – 100 % (min. 10 mA)
  • For luminaires of protection class I and protection class II
  • Temperature protection as per EN 61347-2-13 C5e
  • Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer
  • Max. output power 165 W
  • Up to 93 % efficiency
  • Lowest power input on stand-by < 0.16 W
  • Nominal lifetime of 100,000 h and 8 years guarantee

Interfaces

  • Near field communication (NFC)
  • one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
  • ready2mains (configuration via mains)
  • U6Me2 (configuration of chronoSTEP 2 via mains)
  • Terminal blocks: 45° / 0° push terminals

Functions

  • Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)
  • Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains)
  • Dimming through mains voltage (inputDIM)
  • Enhanced constant light output function (eCLO)
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
  • Configurable external temperature management (ETM)
  • Intelligent Temperature Guard (ITG)
  • Intelligent Voltage Guard Plus (IVG+)
  • Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

  • Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer
  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low stand-by losses and high efficiency
  • In-field programming possible after installation with NFC interface and ready2mains
  • High overvoltage protection: up to 10 kV asymmetric (protection class I and II)

Typical applications

  • Road, street and industry

Driver LCO 165W 200–1050mA 285V one4all NFC C EXC3 87500991

Product form

SKU: LCO1652001050-TR
Barcode: 87500991

Trade price available - contact us

£105.69 Excl. VAT

(inc. 20% VAT): £126.83

    • Contact us to confirm availability

    Description

    Driver LCO 165W 200–1050mA 285V one4all NFC C EXC3

    excite NFC outdoor series

    Product description

    • Dimmable built-in constant current LED driver
    • Dimming range 5 – 100 % (min. 10 mA)
    • For luminaires of protection class I and protection class II
    • Temperature protection as per EN 61347-2-13 C5e
    • Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer
    • Max. output power 165 W
    • Up to 93 % efficiency
    • Lowest power input on stand-by < 0.16 W
    • Nominal lifetime of 100,000 h and 8 years guarantee

    Interfaces

    • Near field communication (NFC)
    • one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
    • ready2mains (configuration via mains)
    • U6Me2 (configuration of chronoSTEP 2 via mains)
    • Terminal blocks: 45° / 0° push terminals

    Functions

    • Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)
    • Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains)
    • Dimming through mains voltage (inputDIM)
    • Enhanced constant light output function (eCLO)
    • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
    • Configurable external temperature management (ETM)
    • Intelligent Temperature Guard (ITG)
    • Intelligent Voltage Guard Plus (IVG+)
    • Suitable for emergency escape lighting systems acc. to EN 50172

    Benefits

    • Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer
    • Application-oriented operating window for maximum compatibility
    • Best energy savings due to low stand-by losses and high efficiency
    • In-field programming possible after installation with NFC interface and ready2mains
    • High overvoltage protection: up to 10 kV asymmetric (protection class I and II)

    Typical applications

    • Road, street and industry
