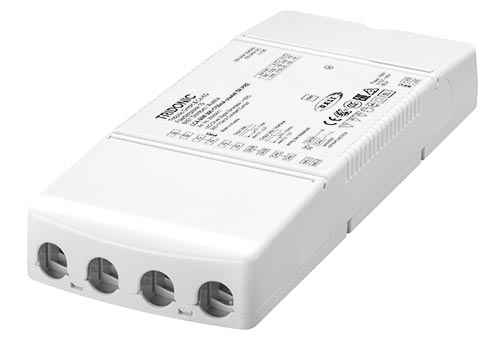

Driver LCA 60W 900–1750mA one4all SR PRE 28000677

Description

Driver LCA 60W 900–1750mA one4all SR PRE

premium series

Product description

  • NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
  • Independent dimmable constant current LED driver with strain-relief
  • Dimmable via DALI / DALI-2
  • Dimming range 1 – 100 % (whole operating window)
  • Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
  • Max. output power 60 W
  • Up to 90 % efficiency
  • Power input on stand-by < 0.2 W
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20
  • Strain relief with loop through function

Interfaces

  • one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
  • ready2mains (configuration and dimming via mains)
  • Terminal blocks: 0° / 45° push terminals (input / output)

Functions

  • Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
  • Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
  • Constant light output function (CLO)
  • Power-up fading at AC
  • Configurable via ready2mains
  • Switch off the driver with fade2zero
  • Service monitor to log certain events
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • For cable cross-sections up to 2.5 mm²

Benefits

  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low stand-by losses and high efficiency
  • Flexible configuration via DALI, ready2mains and I-SELECT 2
  • No tools required for installation

Typical applications

  • For downlight, spotlight and decorative applications

Driver LCA 60W 900–1750mA one4all SR PRE 28000677

Product form

SKU: LCA609001750SRTR
Barcode: 28000677

Trade price available - contact us

£53.34 Excl. VAT

(inc. 20% VAT): £64.01

    • Contact us to confirm availability
