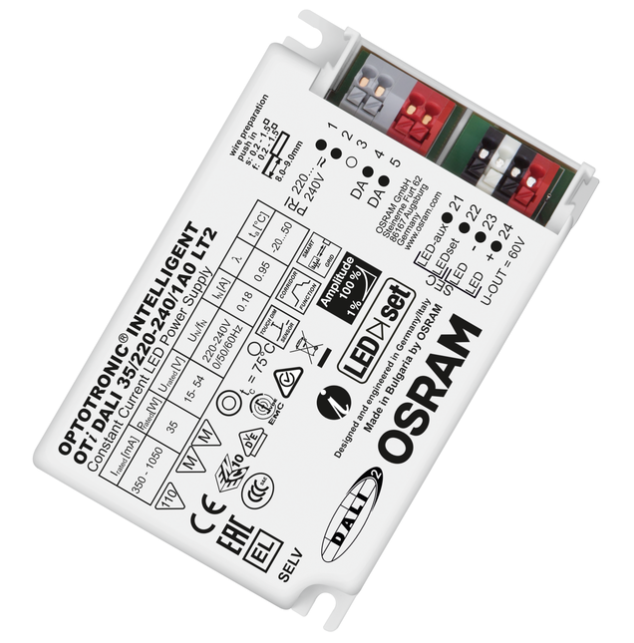

4052899488168 - OTi DALI 35/220…240/1A0 LT2
£45.00
In stock / available to order
Product benefits
- Versatile DALI window driver due to flexible output characteristic
- Very high efficiency
- Protection of the system thanks to thermal management and Smart Control
- High-quality dimming of 1…100 % by amplitude dimming
- Easy to use in corridors and restrooms because of three-level Corridor function
- Touch DIM application: easy to control via pushbutton or sensor
- Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
- Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
- Feedback of power consumption and operating hours (Fit for SMART GRID)
- Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Areas of application
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
- Suitable for indoor SELV installations
- Suitable for luminaires of protection classes I and II
- Suitable for downlights, spotlights and LED panels
- Installation via Cable Clamp Kit possible (depending on version of product)
Product features
- Supply voltage: 220…240 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Line voltage: 198…264 V
- Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
- RI suppression: to EN 55015/CISPR 15
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Lifetime: up to 100,000 h
- Type of protection: IP20
- Independent connection via through-looping (except OTi DALI 15)
Electrical data
| Nominal wattage | 35.00 W |
| Nominal output power | 35 W 1) |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 15…54 V 2) |
| Input voltage AC | 198…264 V 3) |
| Input voltage DC | 176…276 V |
| U-OUT (working voltage) | 60 V |
| Nominal current | 0.18 A |
| Nominal output current | 350…1050 mA 4) |
| Inrush current | |
| Output current tolerance | ±3 % |
| Output ripple current (100 Hz) | < 2 % 6) |
| Mains frequency | 0/50/60 Hz |
| Total harmonic distortion | < 20 % |
| Power factor λ | > 0.95 |
| ECG efficiency | 89 % 7) |
| Device power loss | 5.7 W |
| Max. ECG no. on circuit breaker 10 A (B) | 33 |
| Max. ECG no. on circuit breaker 16 A (B) | 55 |
| Max. ECG no. on circuit breaker 25 A (B) | - |
| Surge capability (L/N-Ground) | 2 kV |
| Surge capability (L-N) | 1 kV |
| Power loss in stand-by mode | < 0.1 W |
| Flickering metric (Pst LM) | ≤1 |
